Tilt-EQ
Tilt-EQ:

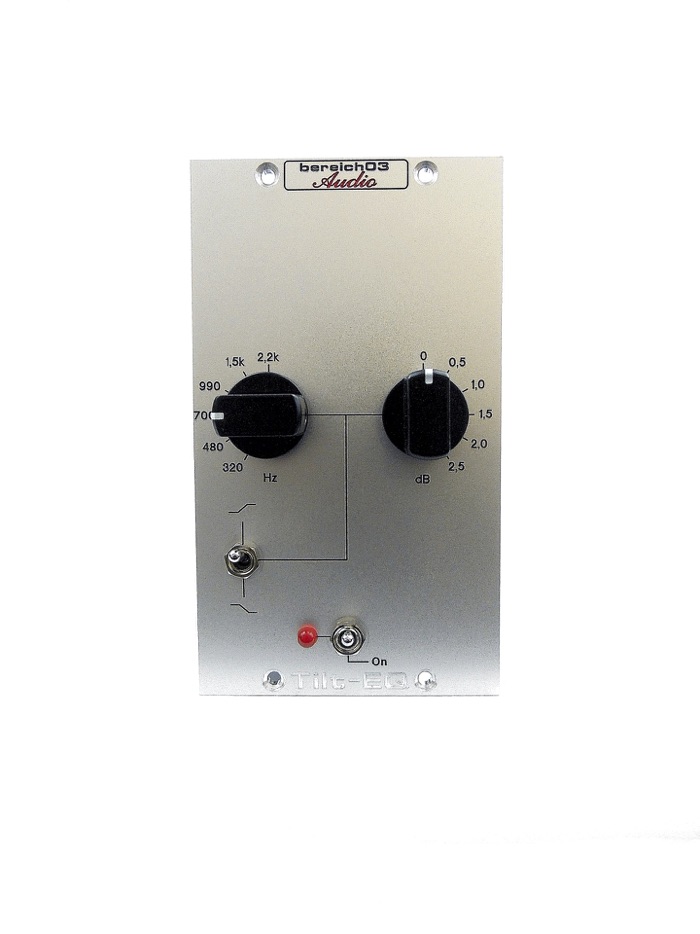

This is a Tilt-EQ with 6 different corner Frequencies. The EQ is based on two custom-made Inductors and one discret OpAmp per channel.
This is a Tilt-EQ with 6 different corner Frequencies. The EQ is based on two custom-made Inductors and one discret OpAmp per channel.
Frequency:
6 different corner frequencies
6 different corner frequencies
Mode:
- Bass cut and High Boost
- or: Bass boost and High Cut
- Bass cut and High Boost
- or: Bass boost and High Cut
Gain:
in 0,5 dB steps
in 0,5 dB steps
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Price:
600,- euro (without german tax)
Availability:
Will be build on request. 3 weeks delivery time.
Specifications:
Frequency Response:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0,0 dB @ 5 Hz
-1 dB @ 79 kHz
26,5 dBu
48 kOhm
50 Ohm
585 gr (1,3lbs)
2 slot
-1 dB @ 79 kHz
26,5 dBu
48 kOhm
50 Ohm
585 gr (1,3lbs)
2 slot
;)

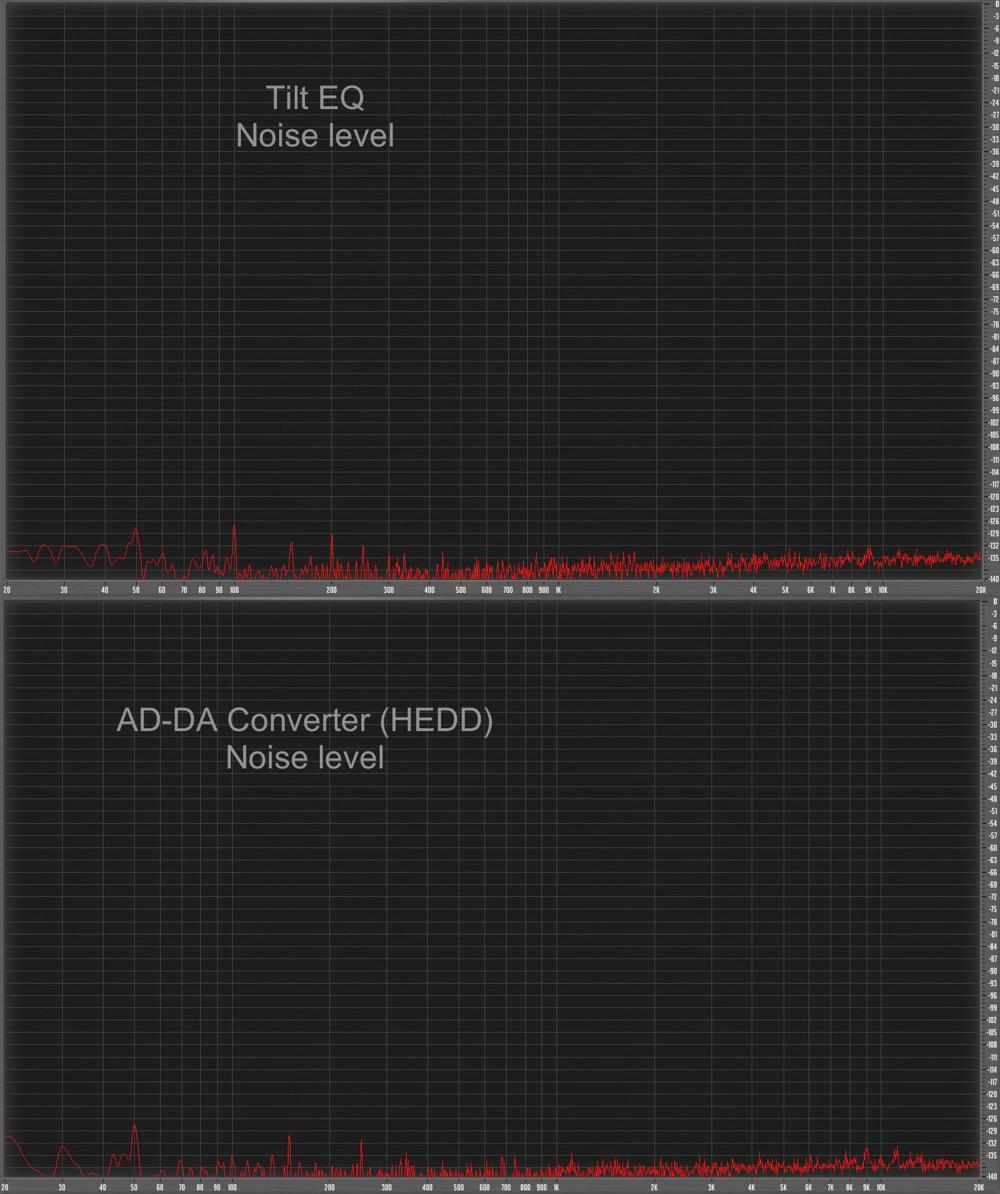

Noise level:
THD:
