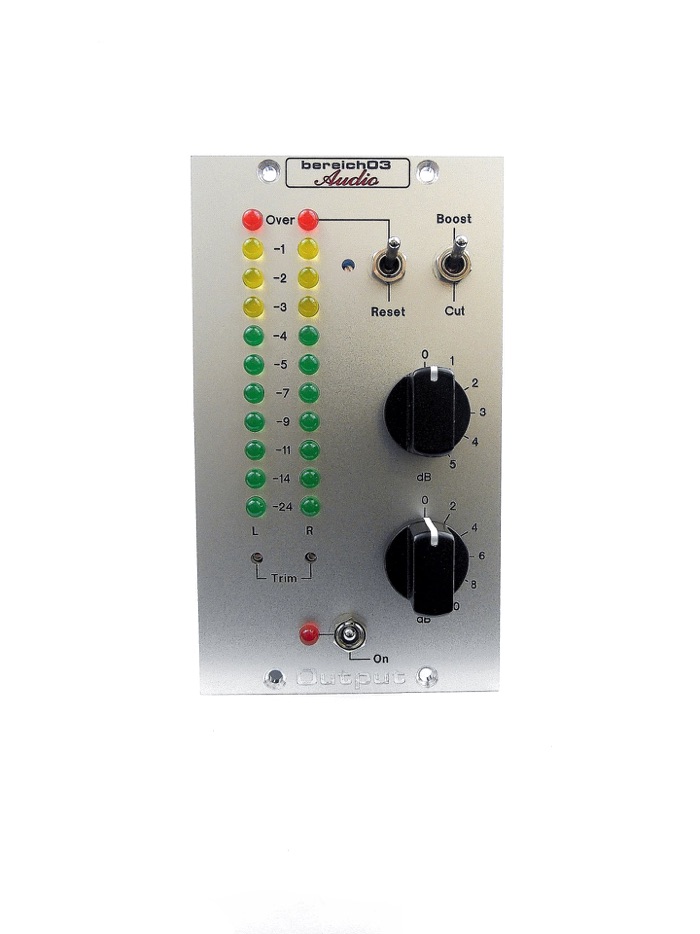

Output
Output:
This is the perfect final stage of your analog mastering chain in front of your A/D converter. Very clean gain and a clear metering with over LEDs.
This is the perfect final stage of your analog mastering chain in front of your A/D converter. Very clean gain and a clear metering with over LEDs.
Trim for Over LED
LED - Meter:
Bar mode
Bar mode
L/R Trim for Metering:
Boost / Cut:
Boost or Cut for gain
Boost or Cut for gain
Gain:
2 dB steps
2 dB steps
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Price:
500,- euro (without german VAT)
Availability:
In stock (most of the time)
Specifications:
Frequency Response:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0 dB @ 5 Hz
-1 dB @ 203 kHz
+24 dBu
-117 dBA
48 kOhm
50 Ohm
405 mA
475 gr (1,1lbs)
2 slots
-1 dB @ 203 kHz
+24 dBu
-117 dBA
48 kOhm
50 Ohm
405 mA
475 gr (1,1lbs)
2 slots
;)
;)
;)
;)

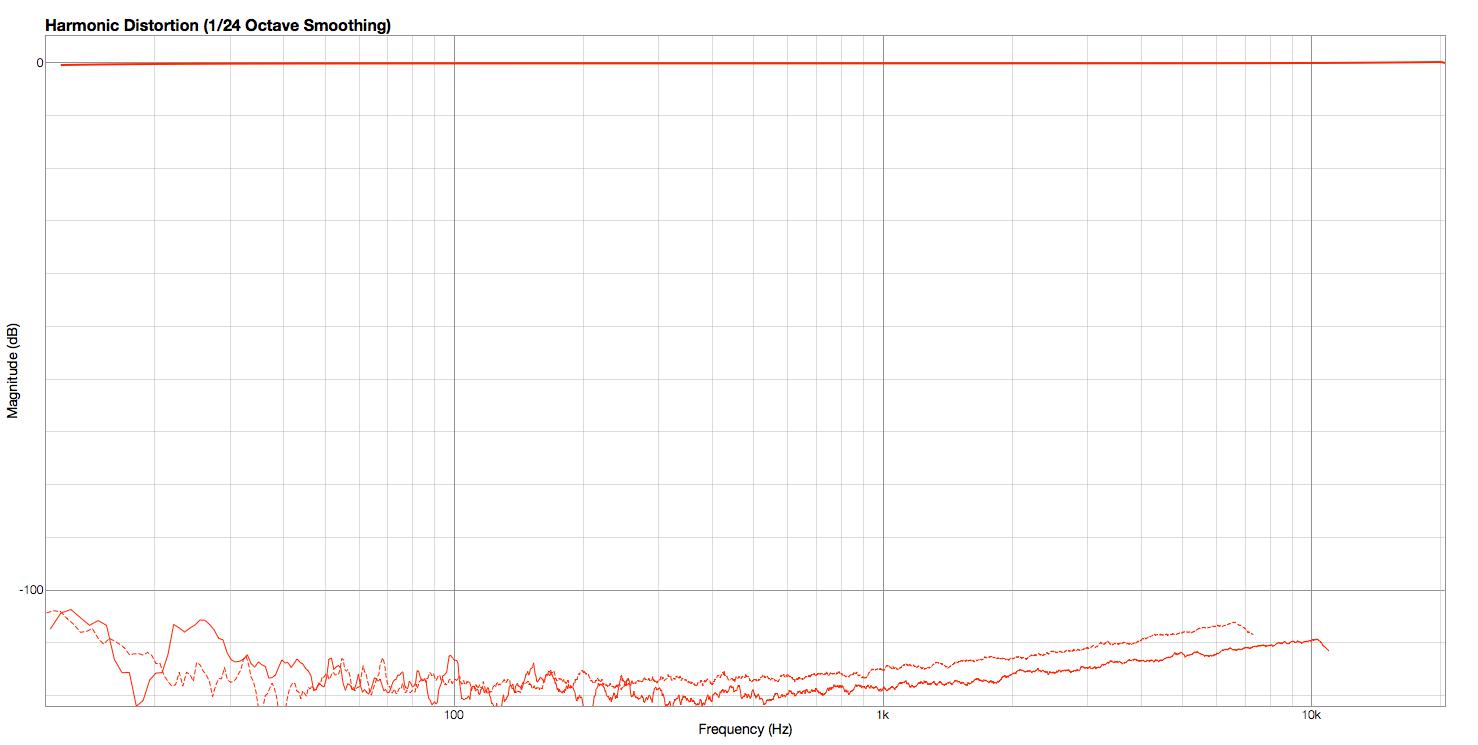

THD:
solid line: 2. harmonics
dashed line: 3. harmonics
solid line: 2. harmonics
dashed line: 3. harmonics

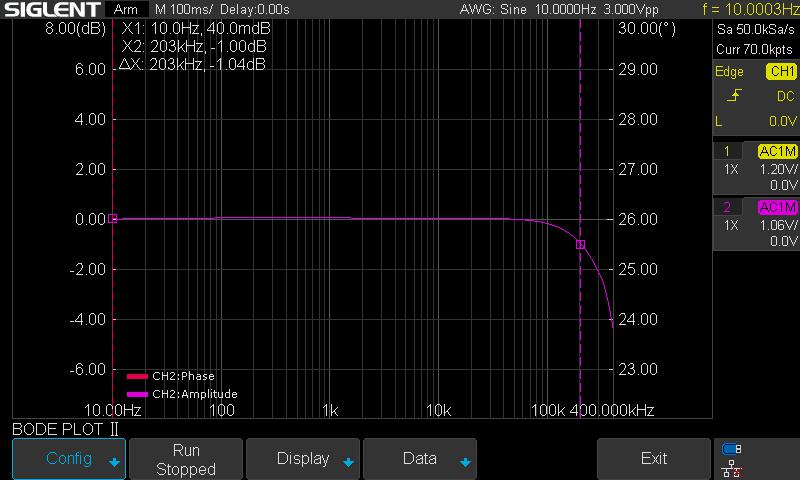

frequency response:
-1dB @ 203kHz
-1dB @ 203kHz
Over LED:
stays on until "Reset" switch
stays on until "Reset" switch
Gain:
1 dB steps
1 dB steps

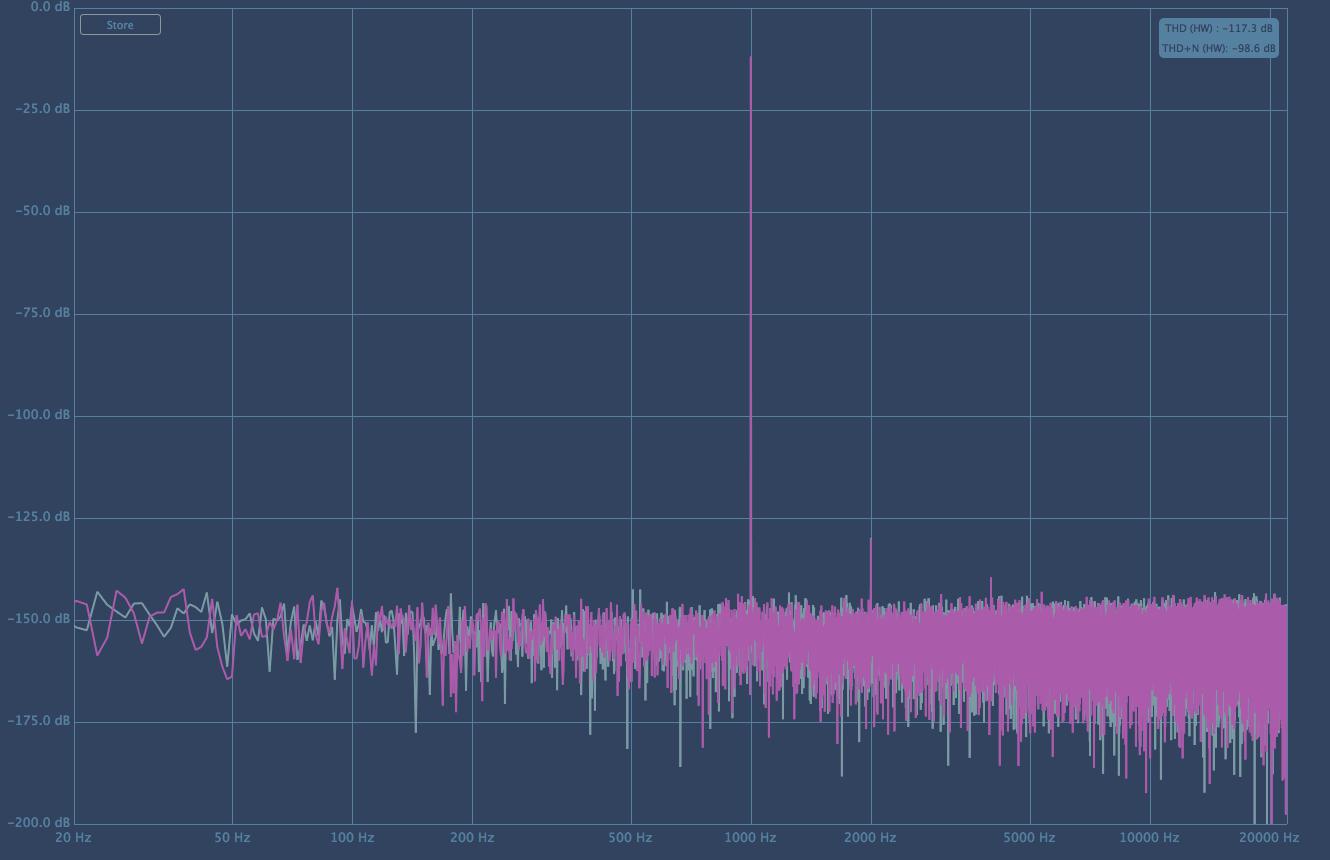

THD:

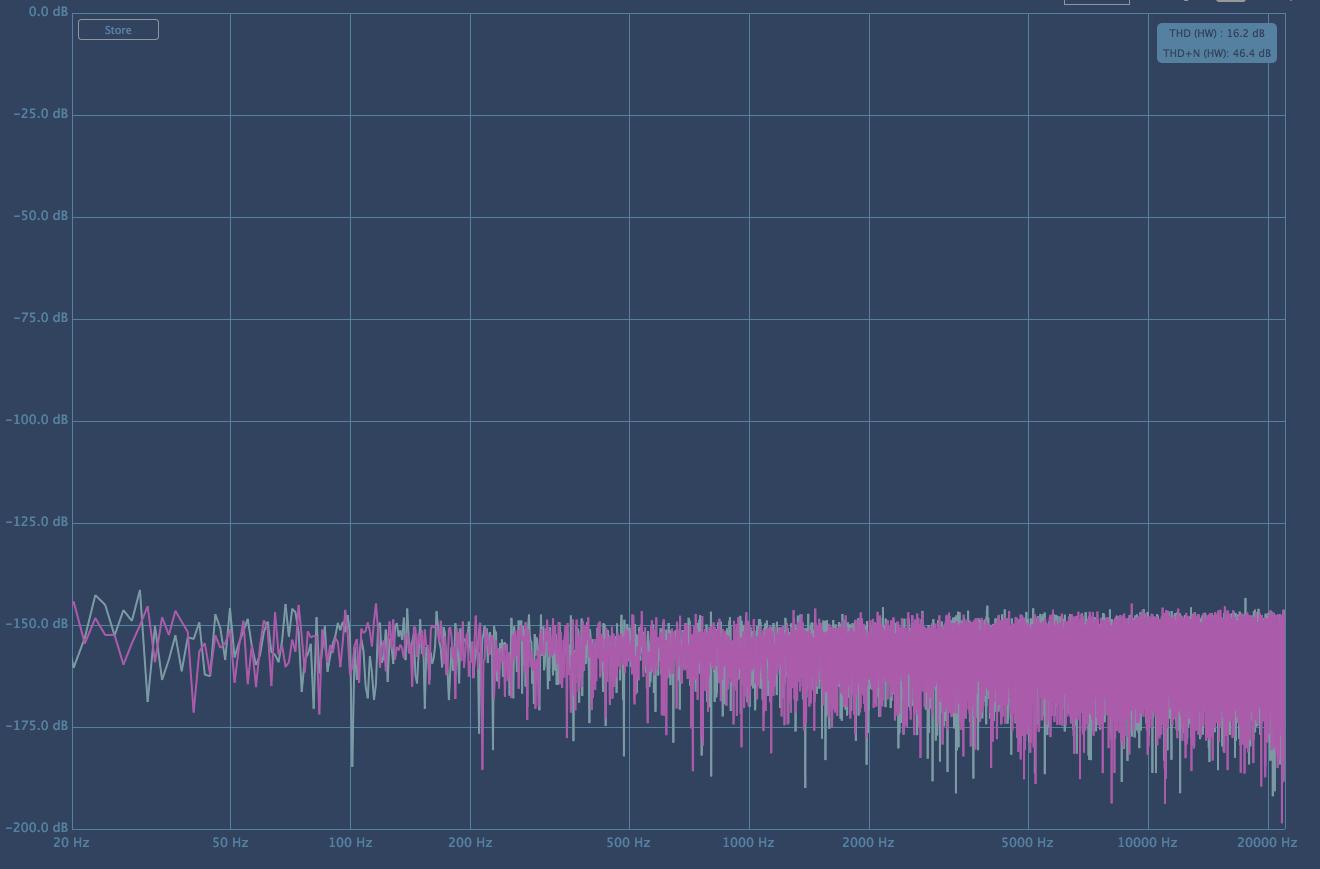

noise level:
