Passive-Mid:

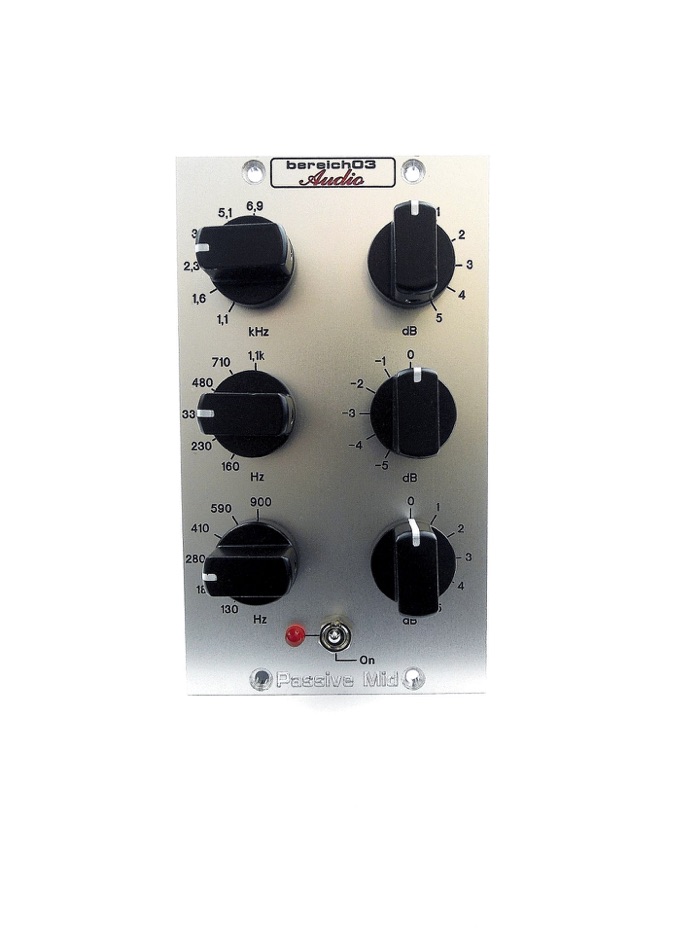

This is a passive EQ with two Boost bands and one cut band. The curves are very broad. All three bands are based on custom-made Inductors with an discret OpAmp for the gain. There are two options for the discret OpAmp. The first is a more modern designe and the second is a more vintage, very simple designe with much more harmonics.
This is a passive EQ with two Boost bands and one cut band. The curves are very broad. All three bands are based on custom-made Inductors with an discret OpAmp for the gain. There are two options for the discret OpAmp. The first is a more modern designe and the second is a more vintage, very simple designe with much more harmonics.
High Mid Boost Fr:
6 different Frequencies
6 different Frequencies
Mid Cut Fr:
6 different Frequencies
6 different Frequencies
Low Mid Boost Fr:
6 different Frequencies
6 different Frequencies
High Mid Boost:
+5dB in 1dB steps
+5dB in 1dB steps
Mid Cut:
5dB in 1dB steps
5dB in 1dB steps
Low Mid Boost:
+5dB in 1dB steps
+5dB in 1dB steps
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Price:
700,- euro (without german tax)
Availability:
Will be build on request. 3 weeks delivery time.
Specifications:
Frequency Response:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0,0 dB @ 5 Hz
-1 dB @ 93 kHz
26,5 dBu
48 kOhm
50 Ohm
145 mA
655 gr (1,4lbs)
2 slot
-1 dB @ 93 kHz
26,5 dBu
48 kOhm
50 Ohm
145 mA
655 gr (1,4lbs)
2 slot
;)
;)
;)
;)
;)
;)
;)
High Mid
Boost Frequencies:
Boost Frequencies:

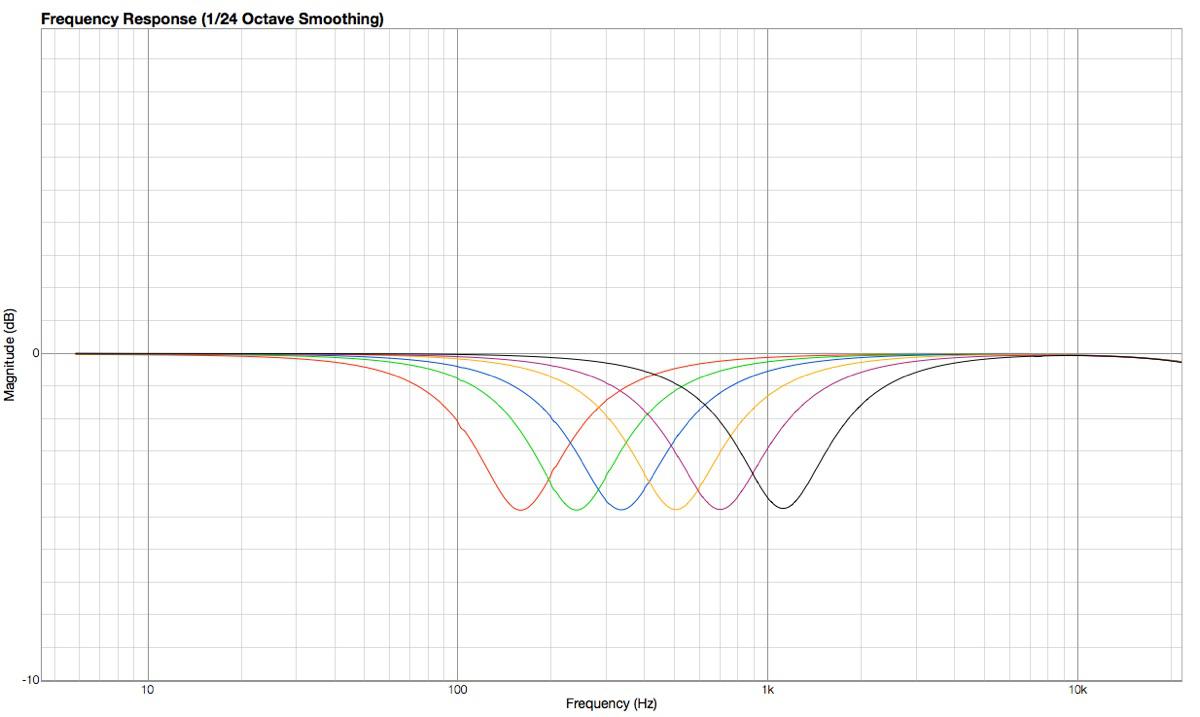

Mid Cut Frequencies:

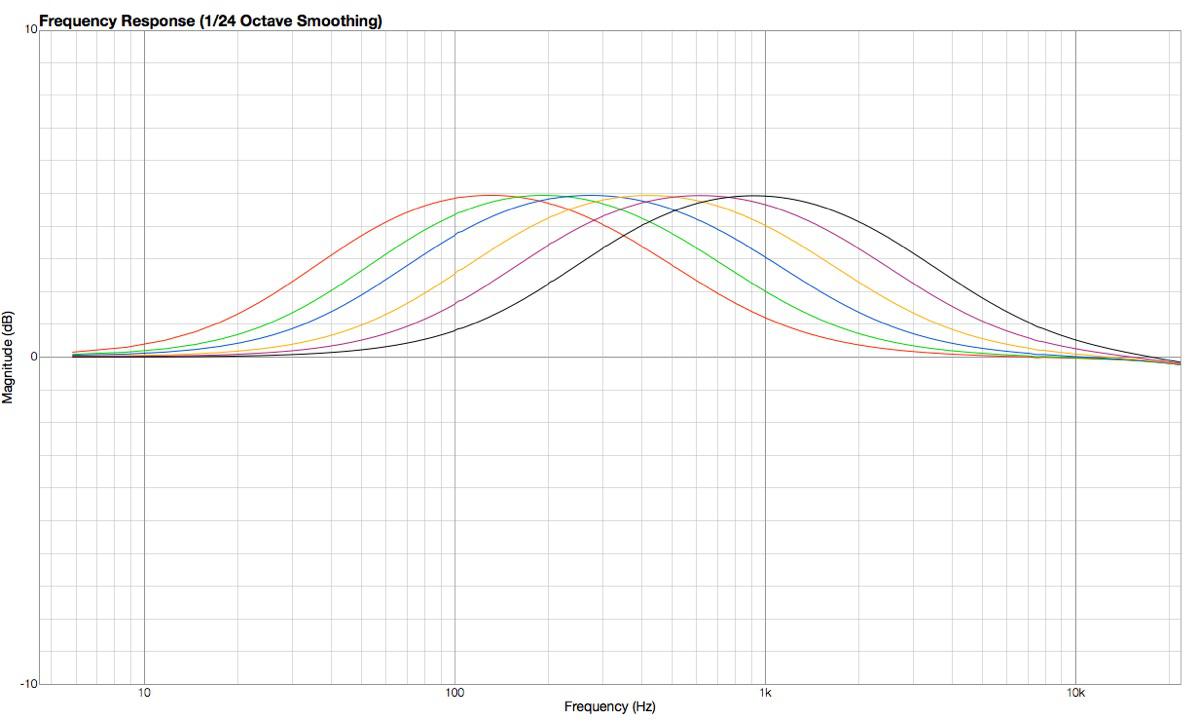

Low Mid
Boost Frequencies:
Boost Frequencies:

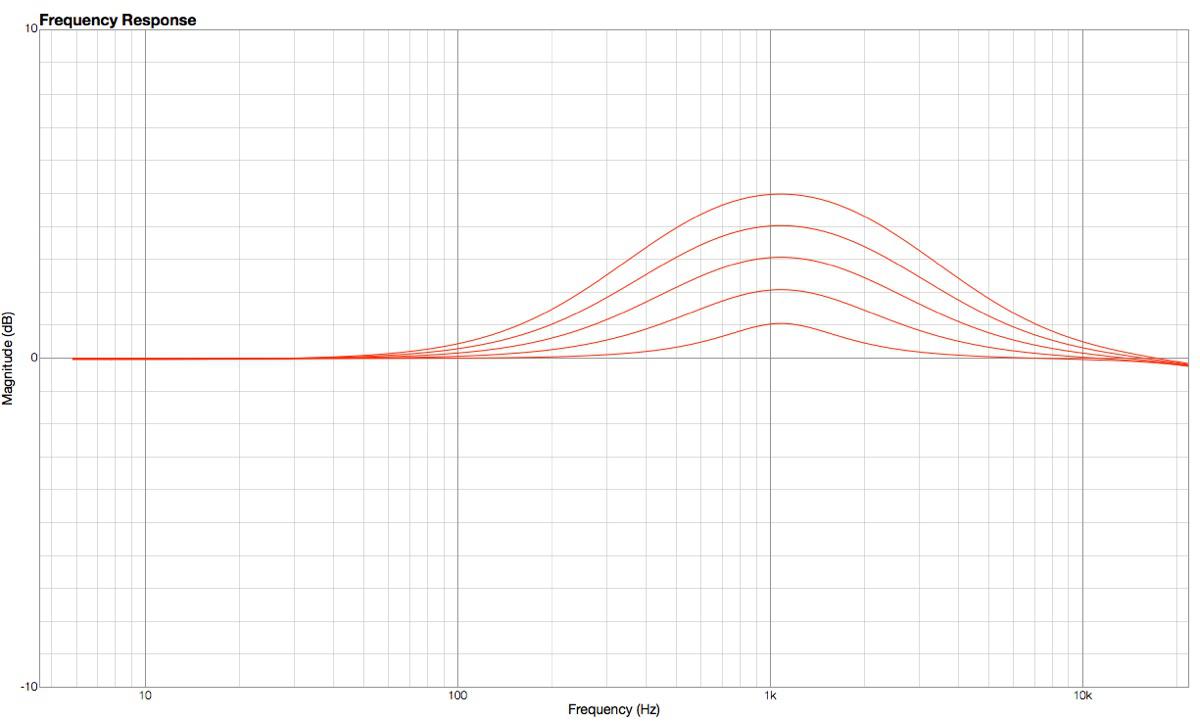

Gain steps:

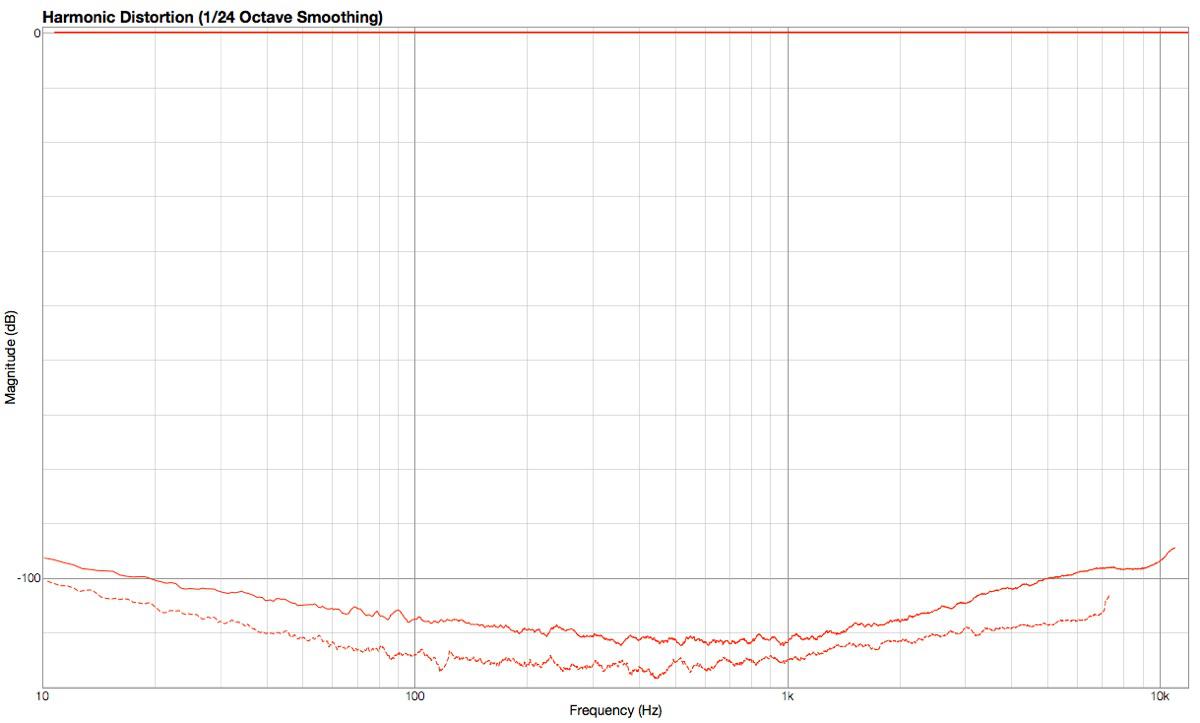

modern OpAmp THD:
solid line: 2. harmonics
dashed line: 3. harmonics
solid line: 2. harmonics
dashed line: 3. harmonics

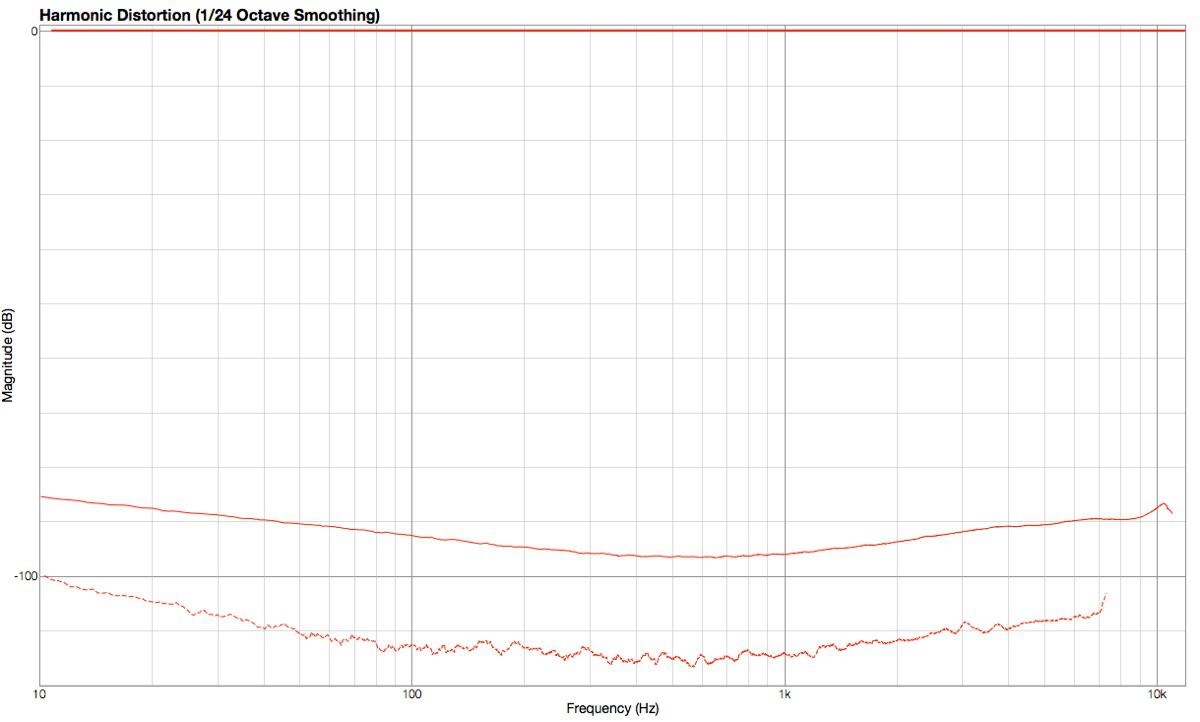

modern OpAmp THD:
solid line: 2. harmonics
dashed line: 3. harmonics
solid line: 2. harmonics
dashed line: 3. harmonics

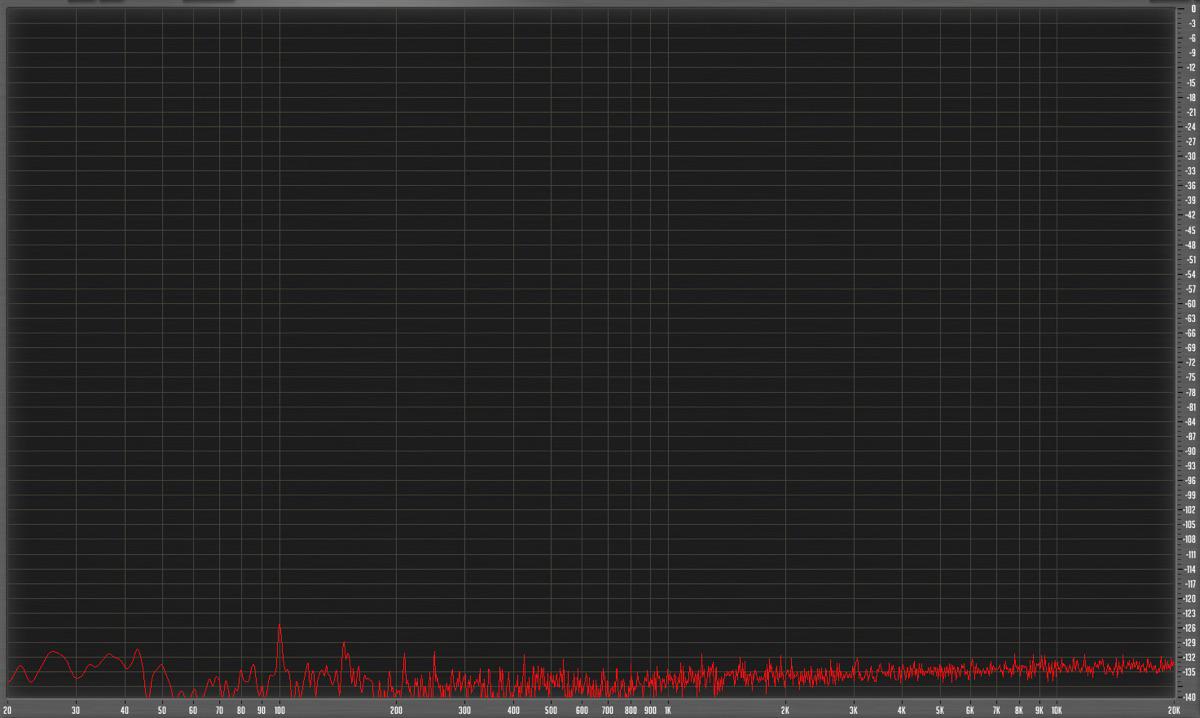

Noise level:
