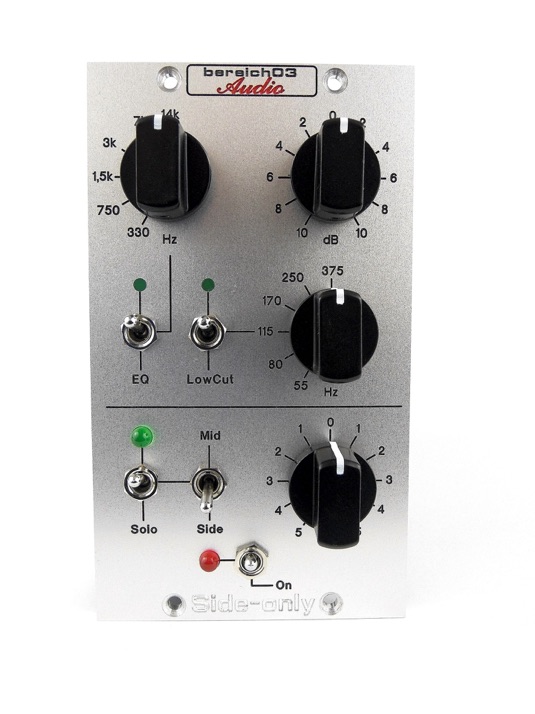

Side-only:
This module affects only the side signal of a stereo source. Gain, LowCut, 1-band EQ and a Solo-Function to listen to the Mono or Side-signal. If you leave the Mid-Solo in, you can make mono version of your mix.
EQ:
- 1 band Baxandal EQ
- +/-10dB gain in 2dB steps
- 0,5 or 1dB steps on request
EQ and LowCut On:
Off: hardwire bypass
Solo:
- Listen to Mid or Side
- LED flashes during Solo
LowCut:
- 12 dB/oct
- 6 Cutoff frequencies
Gain:
-
+/-5 dB in 1 dB steps
- 0,5 or 2 dB steps on request
On / Off:
Off: hardwire bypass with relays
Price:
600,- euro (without german VAT)
Availability:
In stock (most of the time)
Specifications:
Frequency Response:


Max. Level:

Noise Level, dBA

Input Impedance:

Output Impedance:

Power consumption:

Weight:

Dimensions:
0 dB @ 5 Hz
-1 dB @ 125 kHz

+24 dBu

-115 dBA

48 kOhm

50 Ohm

255 mA

495g (1,1 lbs)

2 slots

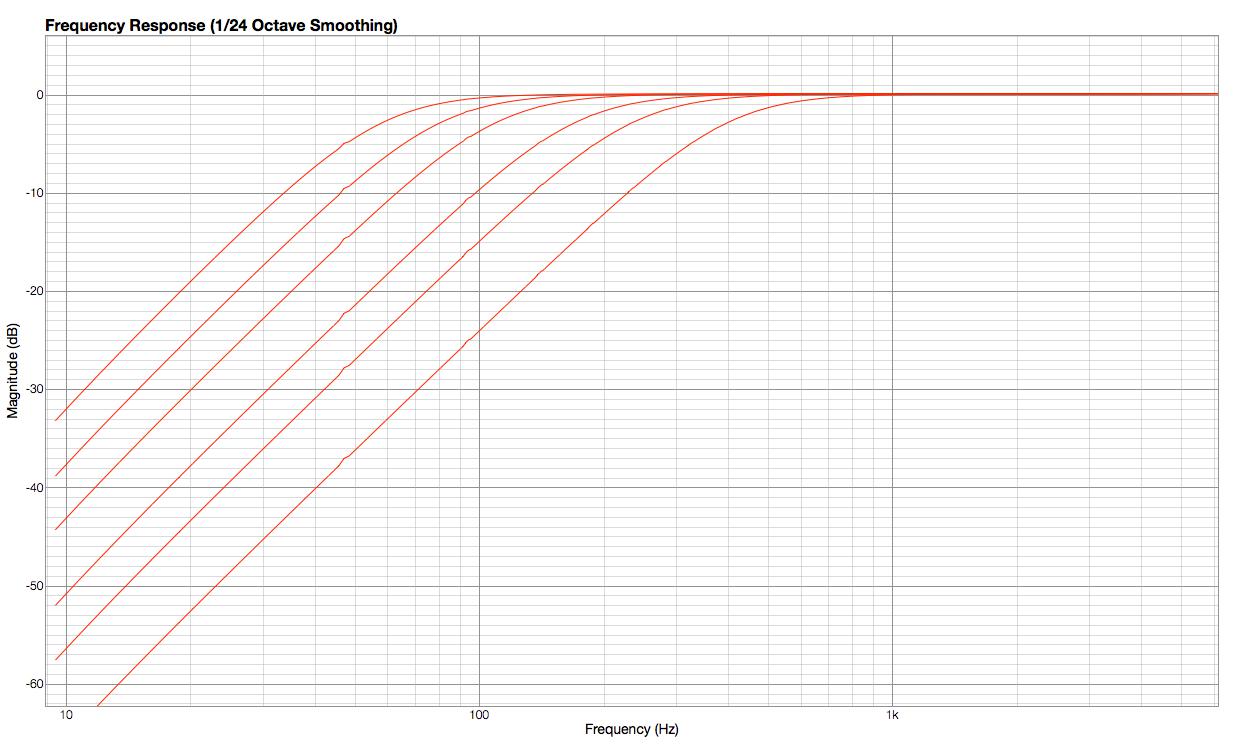

LowCut:

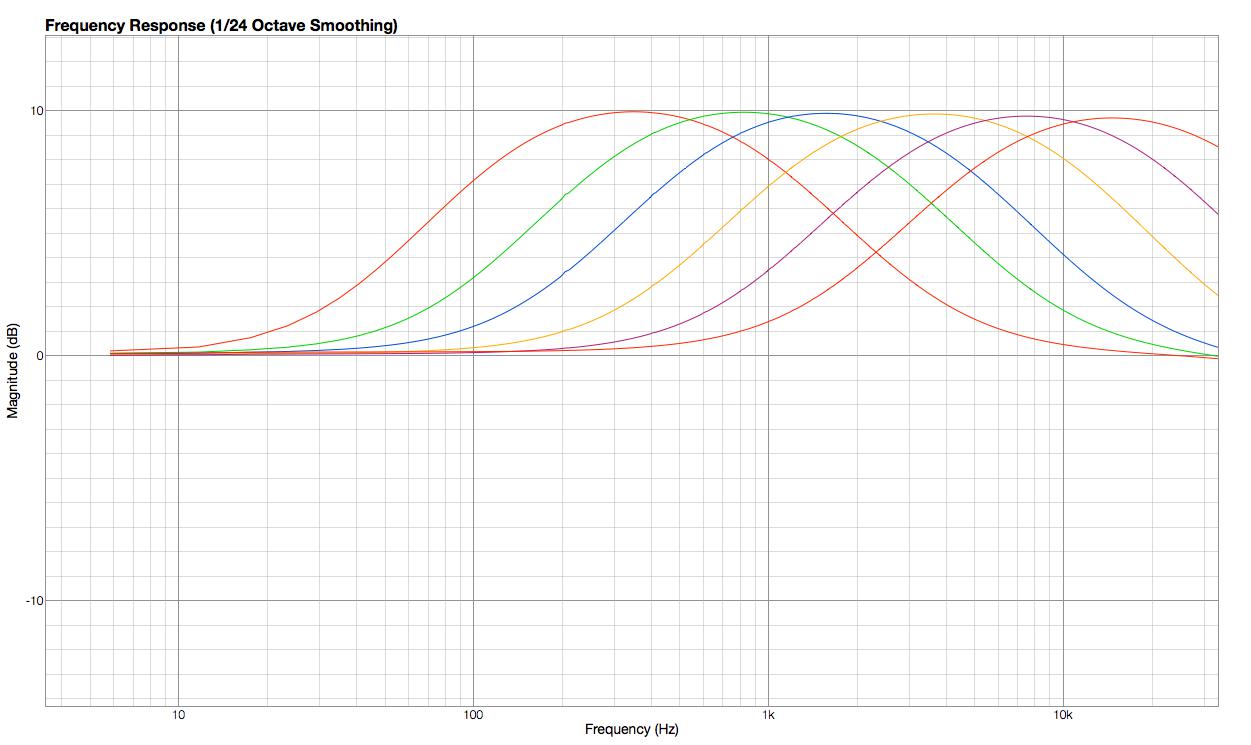

EQ:
+10 dB
Input
LED-Meter
Filter
density
Passive-Bass
Passive-Mid
Passive-Shelf
Tilt-EQ
Limiter
Output
Fader
VU-Meter
Monitor-Controller
Review:
Side-only - Sound On Sound
[ videos ]
[ user gallery ]
[ order ]
[ contact ]

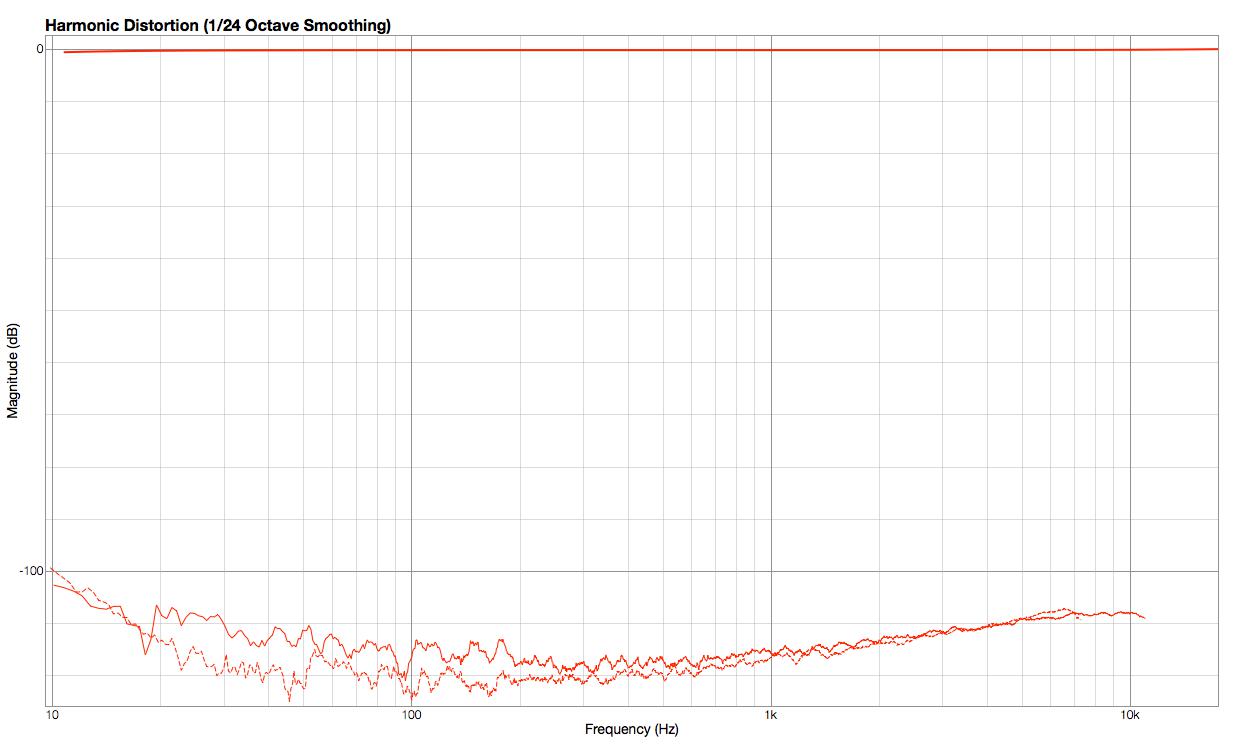

THD:

solid line: 2. harmonics
dashed line: 3. harmonics

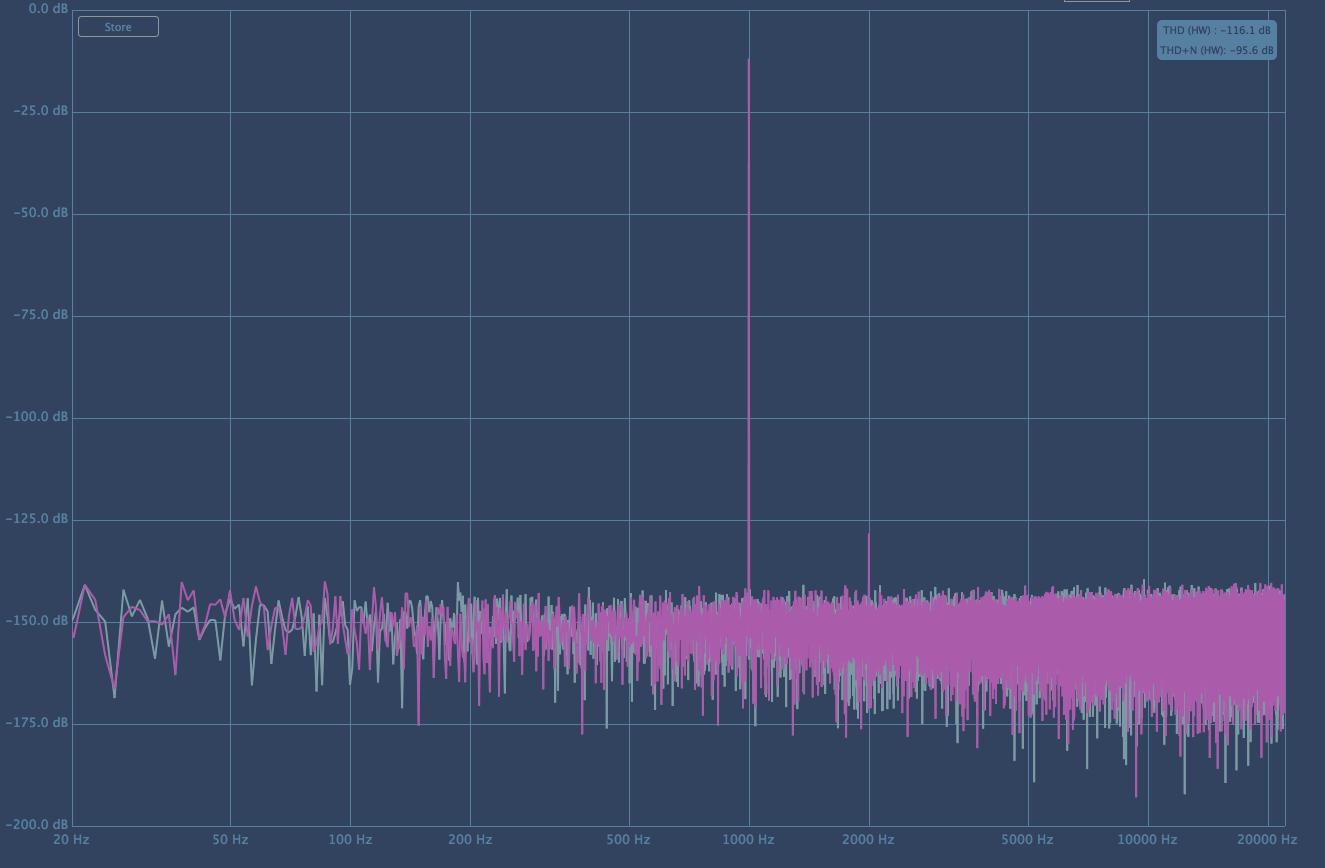

THD:
Side-only:
This module affects only the side signal of a stereo source. Gain, LowCut, 1-band EQ and a Solo-Function to listen to the Mono or Side-signal. If you leave the Mid-Solo in, you can make mono version of your mix.

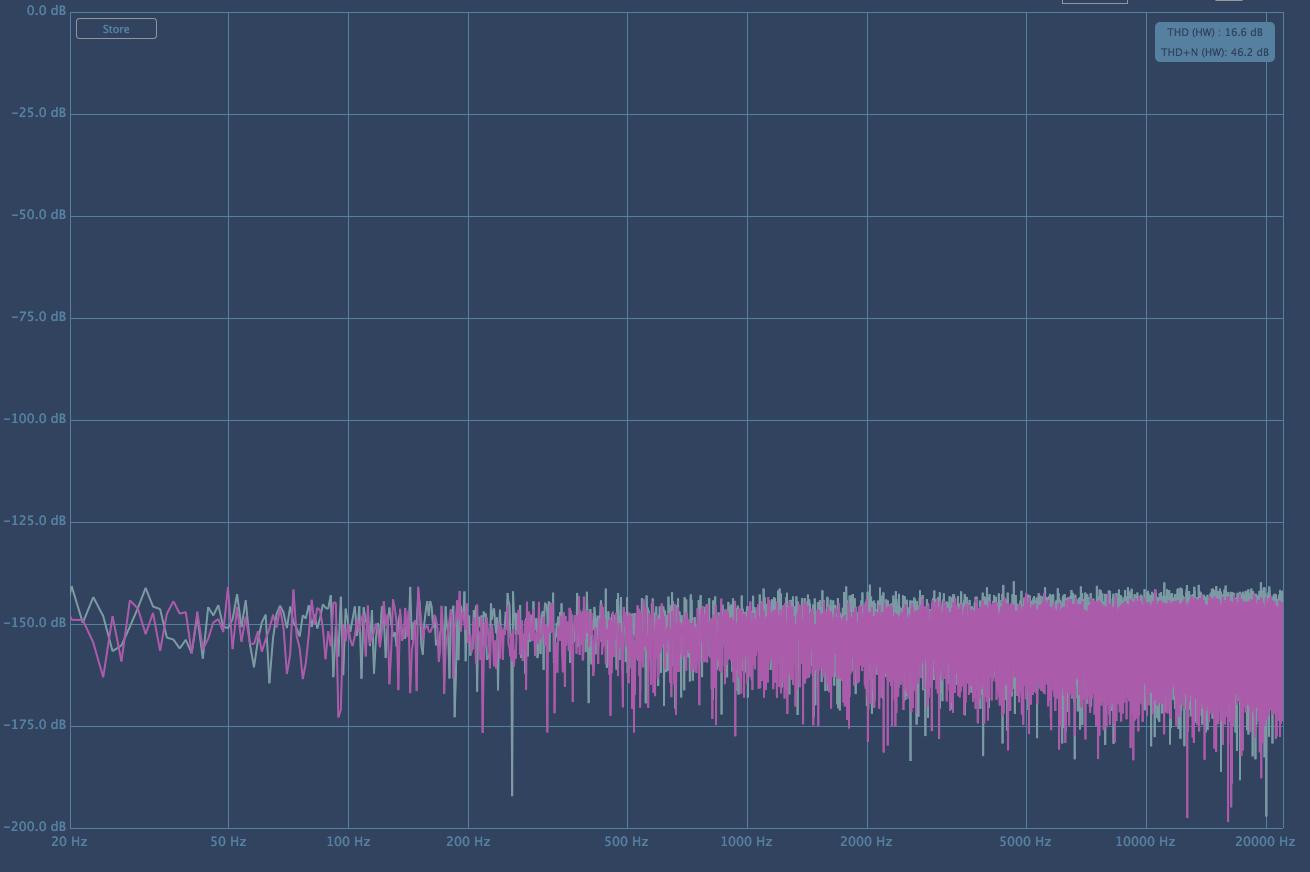

noise level:

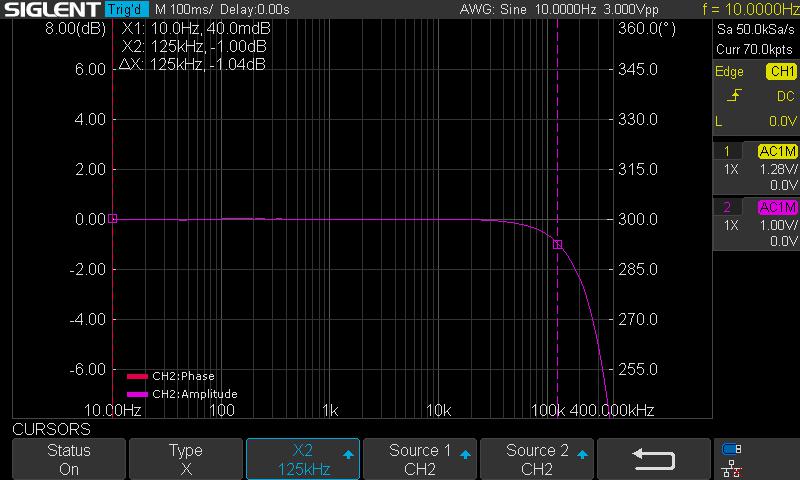

Frequency response:
-1dB @ 125kHz
