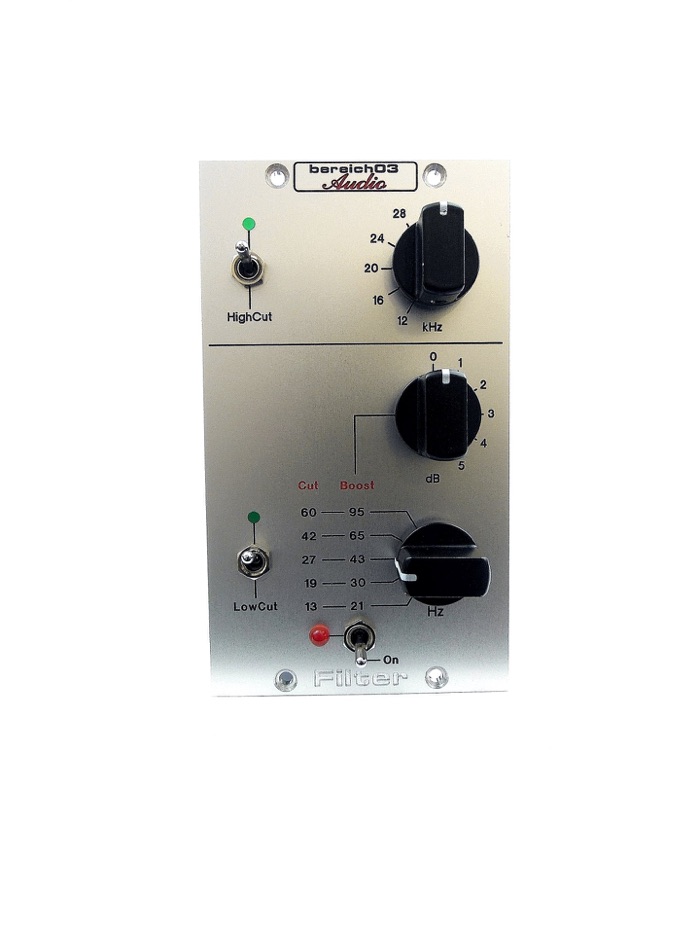

Filter
Filter:
6dB/oct HighCut Filter up to 32kHz and a 12dB/oct LowCut Filter down to 13Hz plus Boost Function.
6dB/oct HighCut Filter up to 32kHz and a 12dB/oct LowCut Filter down to 13Hz plus Boost Function.
High Cut filter:
6 dB/oct
6 dB/oct
Low Cut filter:
12 dB/oct
12 dB/oct
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Cutoff frequency:
6 different cutoff frequencies
6 different cutoff frequencies
Boost:
Boosting the corner frequency in 1 dB steps.
Boosting the corner frequency in 1 dB steps.
Cutoff frequency:
- 6 different cutoff frequencies
- "Cut" is the -3dB point
- "Boost" is the frequency where the boost happens.
- 6 different cutoff frequencies
- "Cut" is the -3dB point
- "Boost" is the frequency where the boost happens.
Price:
500,- euro (without german VAT)
Availability:
In stock (most of the time)
Specifications:
Frequency Response:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0 dB @ 5 Hz (LowCut off)
-1 dB @ 297 kHz (HighCut off)
+24 dBu
-117 dBA
48 kOhm
50 Ohm
285 mA
485 gr (1,1lbs)
2 slots
-1 dB @ 297 kHz (HighCut off)
+24 dBu
-117 dBA
48 kOhm
50 Ohm
285 mA
485 gr (1,1lbs)
2 slots
;)
;)
;)
;)
;)
;)
;)
;)

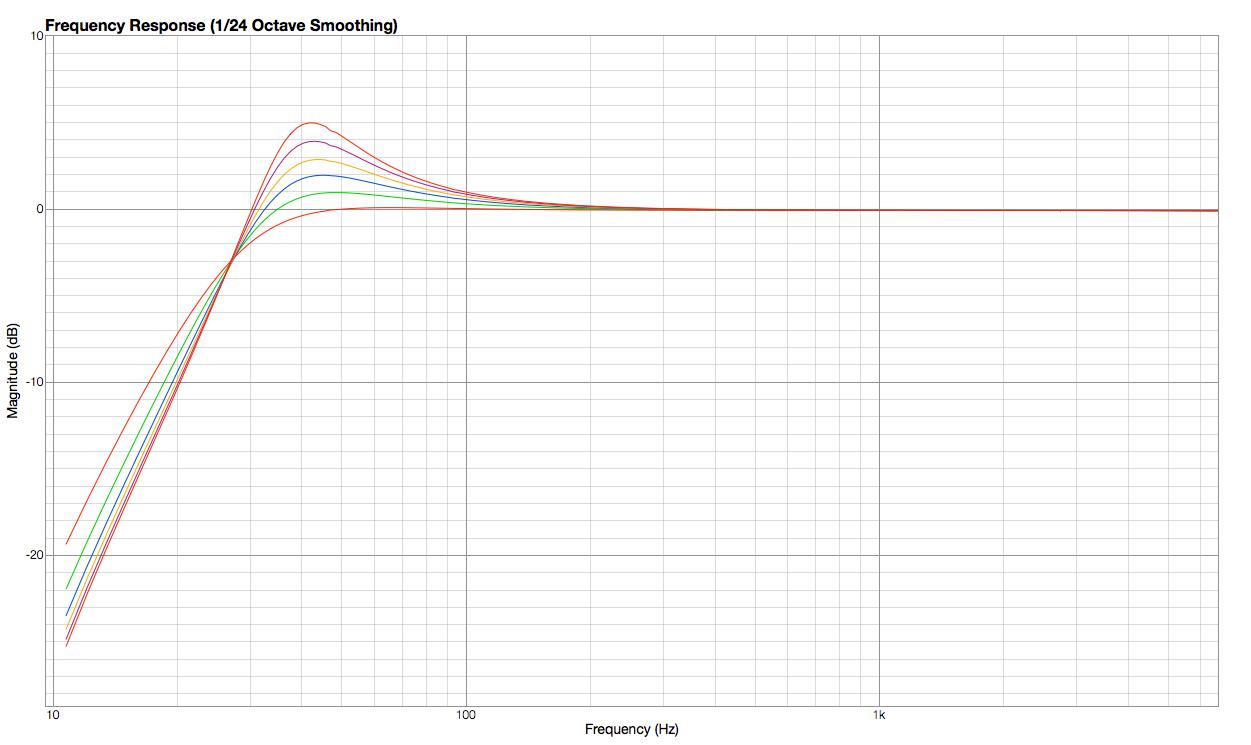

Low Cut:
1 - 5 dB Boost
1 - 5 dB Boost

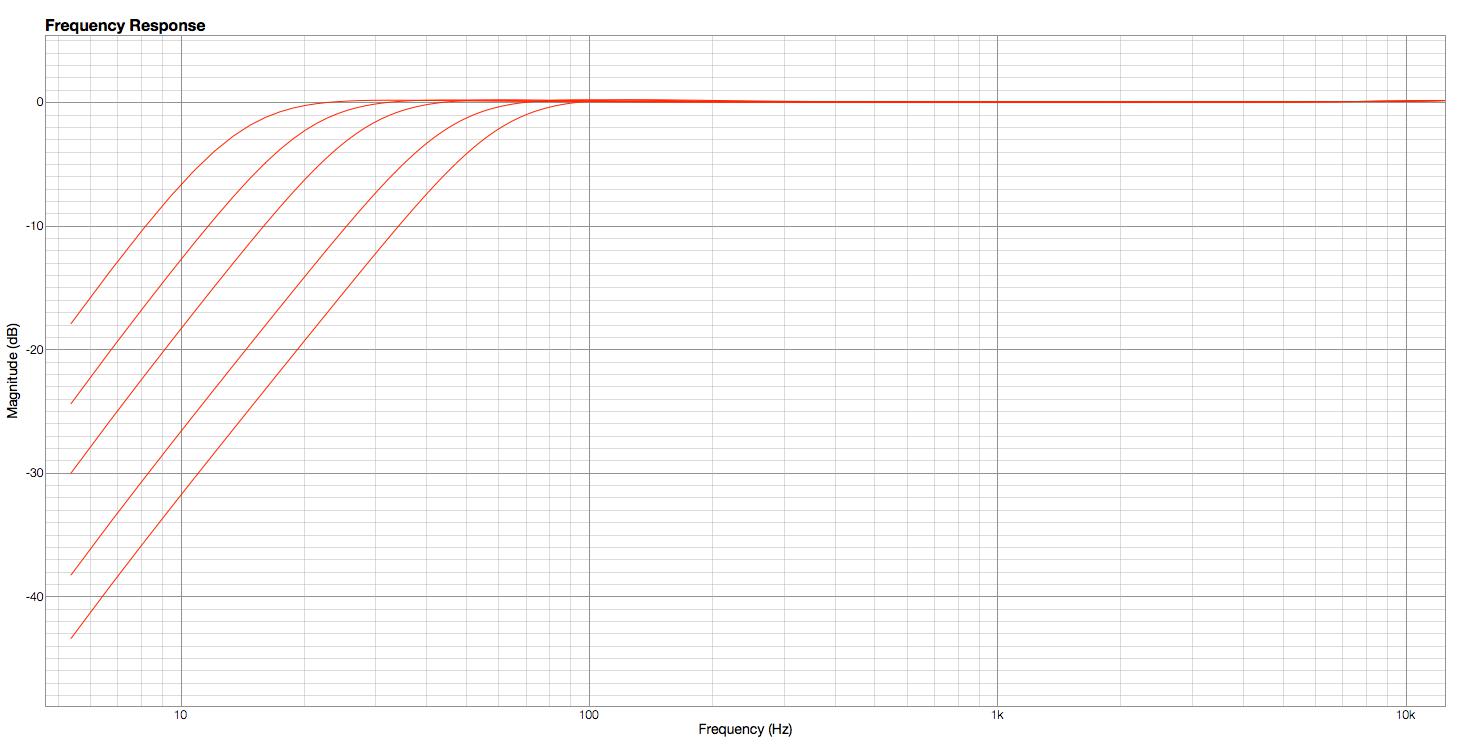

Low Cut:
different frequencies
without boost
different frequencies
without boost

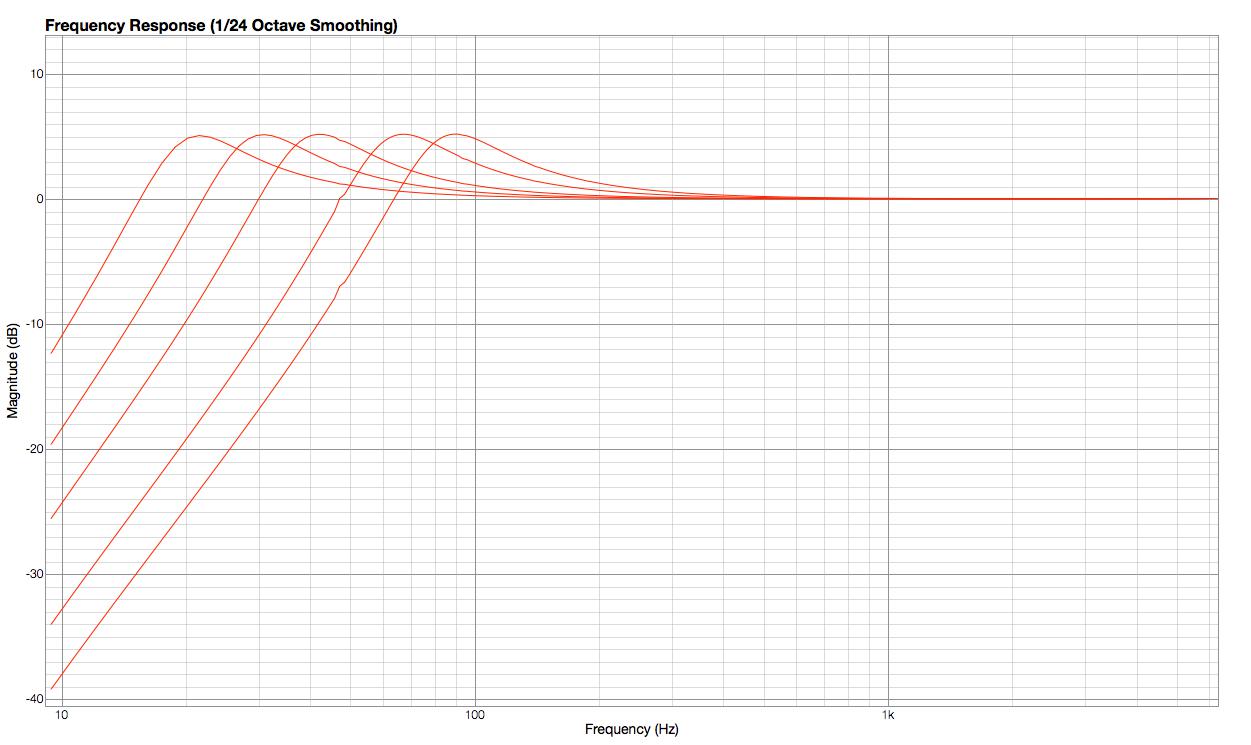

Low Cut:
different frequencies
5 dB boost
different frequencies
5 dB boost

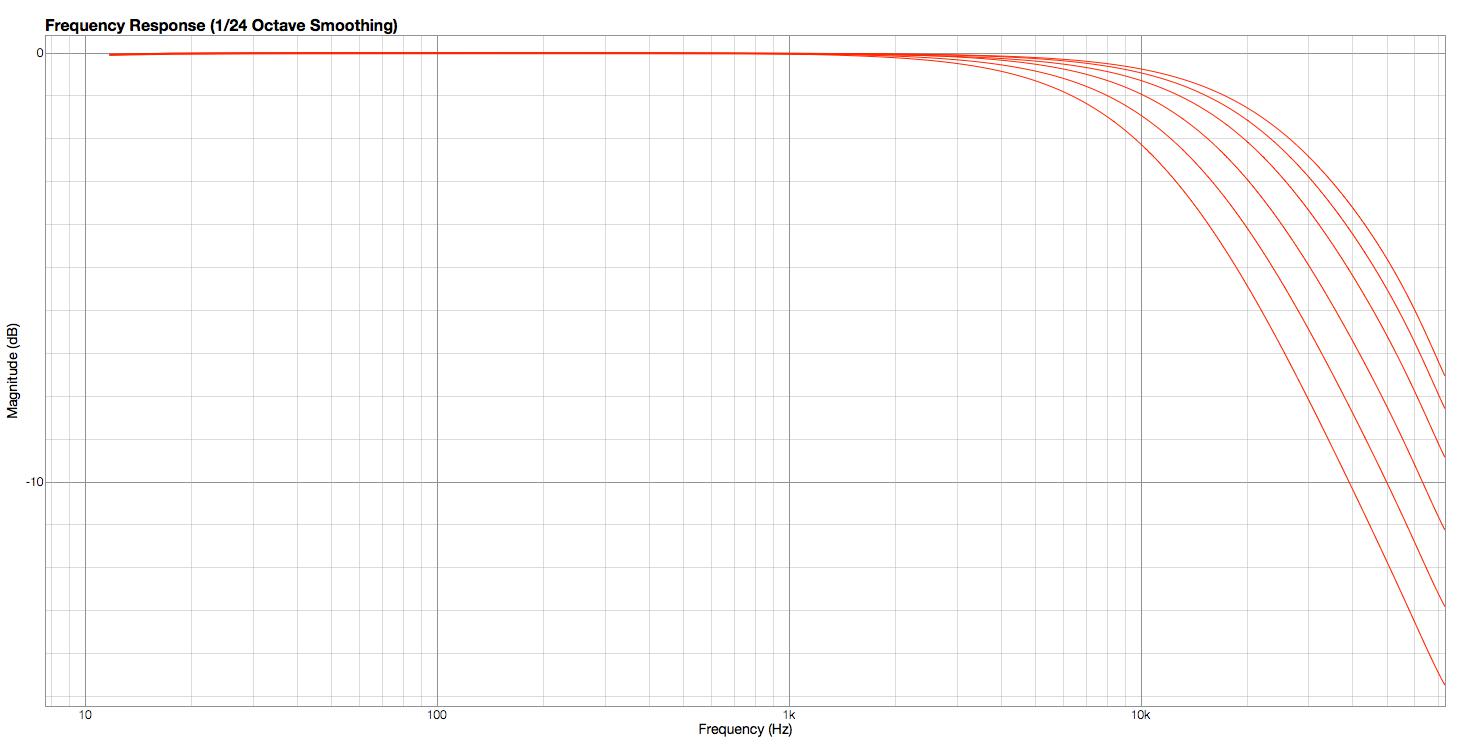

High Cut:
different frequencies
different frequencies

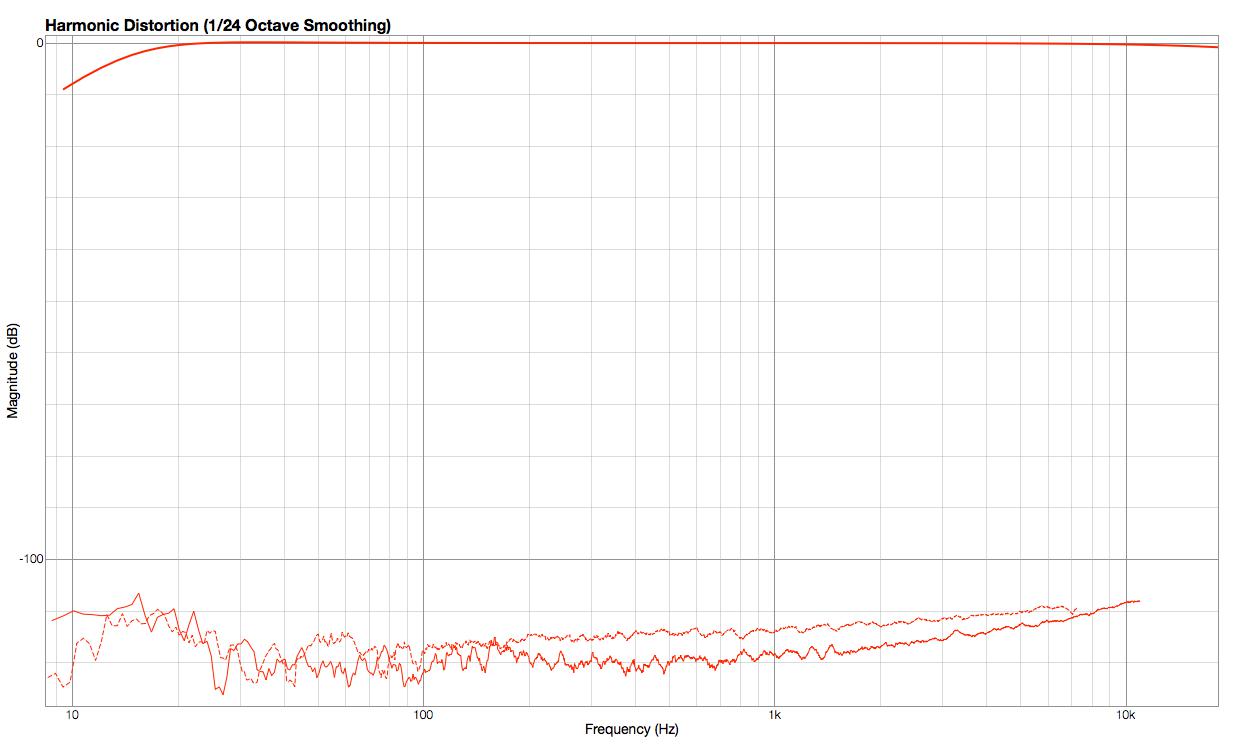

THD:
both filters on
LowCut: 13 Hz
HighCut: 32 kHz
solid line: 2. harmonics
dashed line: 3. harmonics
both filters on
LowCut: 13 Hz
HighCut: 32 kHz
solid line: 2. harmonics
dashed line: 3. harmonics

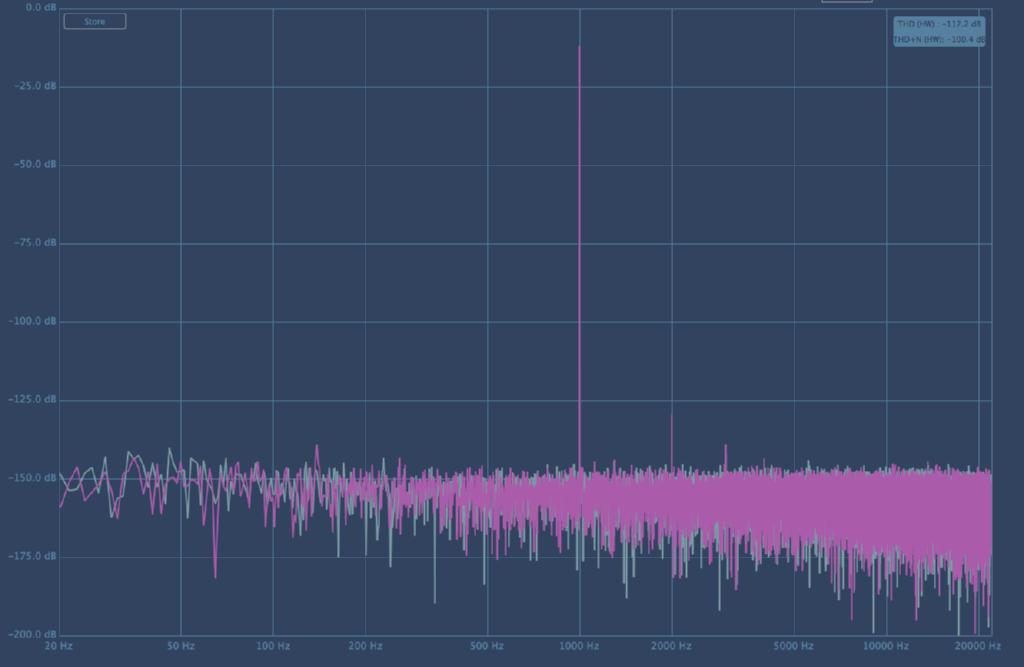

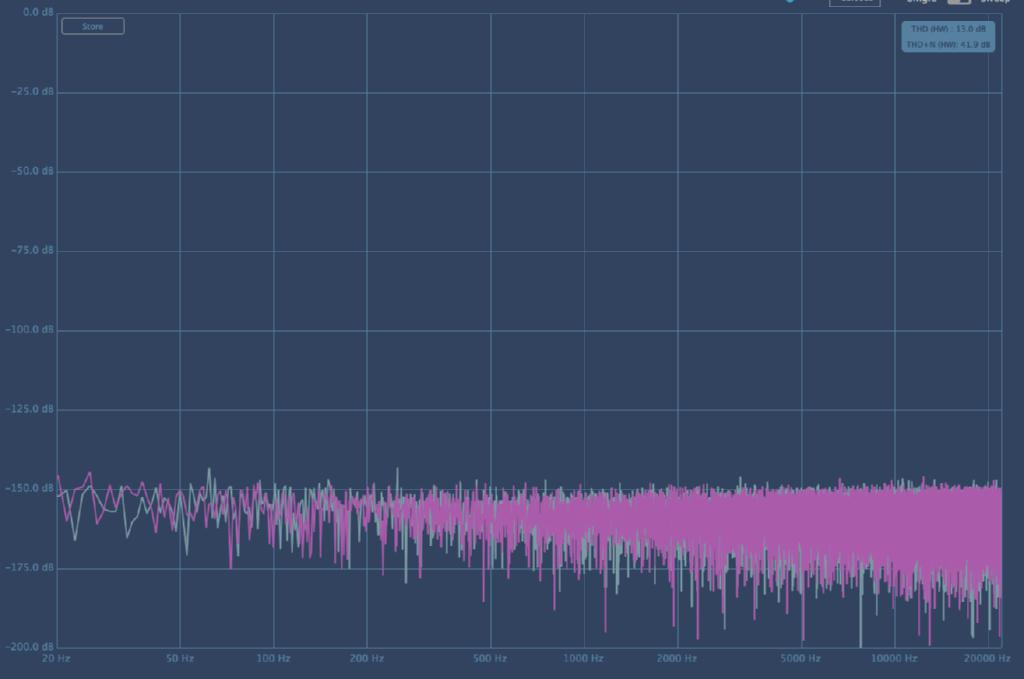

noise level:
THD:
both filters on
both filters on

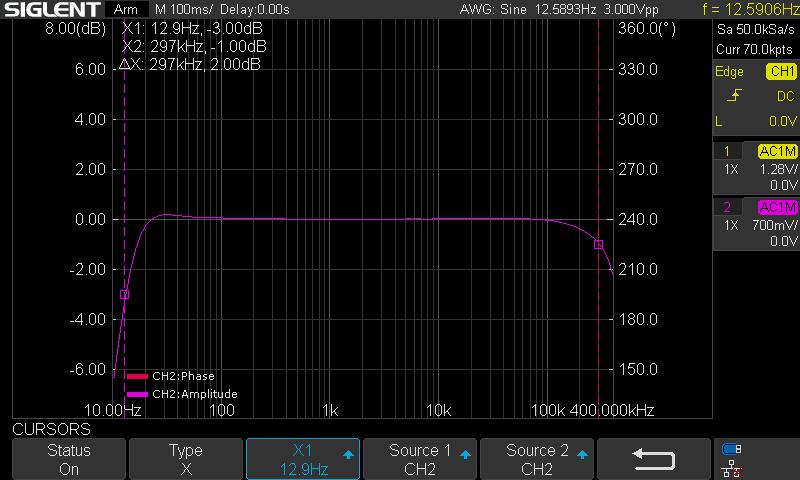

Frequency response:
LowCut on: 13Hz
-1dB @ 297kHz
LowCut on: 13Hz
-1dB @ 297kHz
