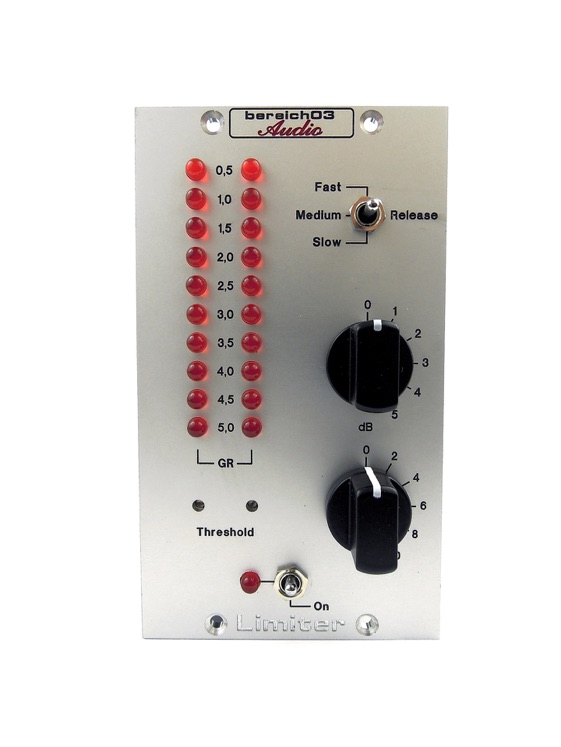

Limiter
Limiter:
This is a fast controlled VCA with peak detector side chain. Attack time is fixed. There is no make up gain. Set the Threshold to the -1dB point of your A/D converter. Then rise the input until you get the desired gain reduction.
This is a fast controlled VCA with peak detector side chain. Attack time is fixed. There is no make up gain. Set the Threshold to the -1dB point of your A/D converter. Then rise the input until you get the desired gain reduction.
Gainreduction Meter:
in 0,5 dB steps
in 0,5 dB steps
Threshold:
Trimmer for L and R
Trimmer for L and R
Release:
3 different release times
3 different release times
Input Gain:
1 dB steps
1 dB steps
Input Gain:
2 dB steps
2 dB steps
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Price:
700,- euro (without german VAT)
Availability:
In stock (most of the time)
Specifications:
Frequency Response:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0 dB @ 5 Hz
-1 dB @ 139 kHz
+24 dBu
-114 dBA
48 kOhm
50 Ohm
max: 510 mA (all GR-LEDs on)
min: 280 mA (no GR-LED on)
480 gr (1,1lbs)
2 slots
-1 dB @ 139 kHz
+24 dBu
-114 dBA
48 kOhm
50 Ohm
max: 510 mA (all GR-LEDs on)
min: 280 mA (no GR-LED on)
480 gr (1,1lbs)
2 slots

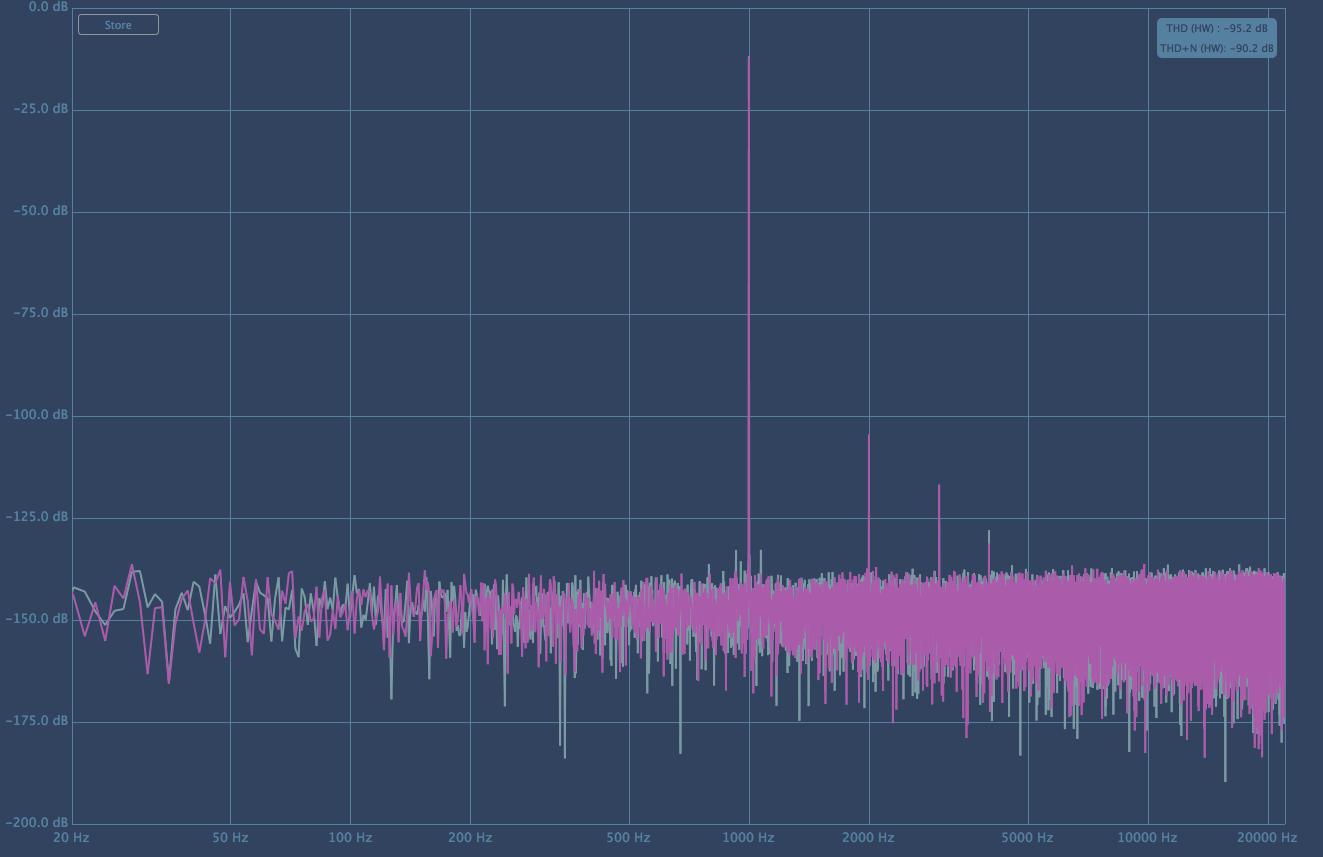

THD:
Test signal with -12dB
at reference level of +24dBu:
Test signal with -12dB
at reference level of +24dBu:
;)
;)
;)
;)
;)
;)
;)

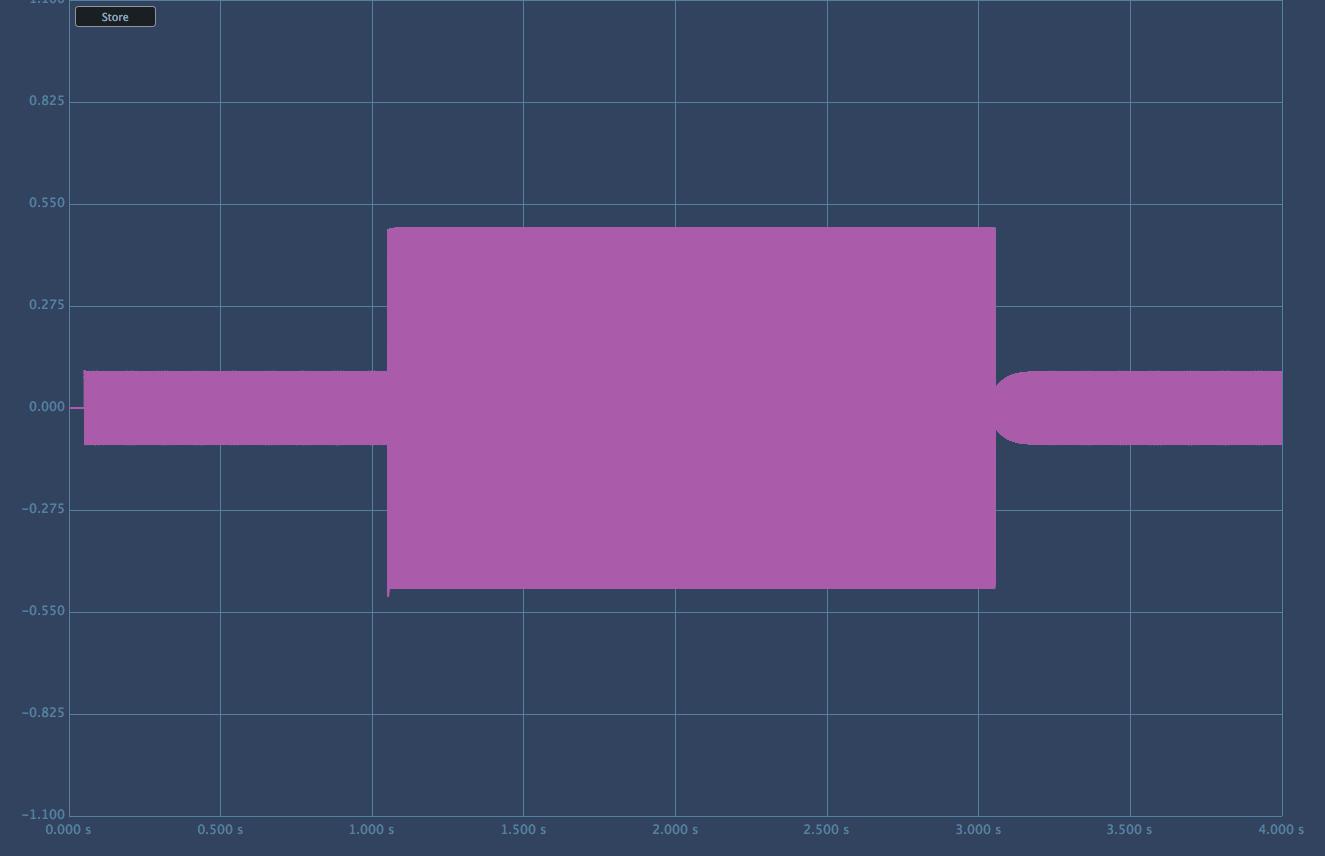

Release:
Fast
Fast

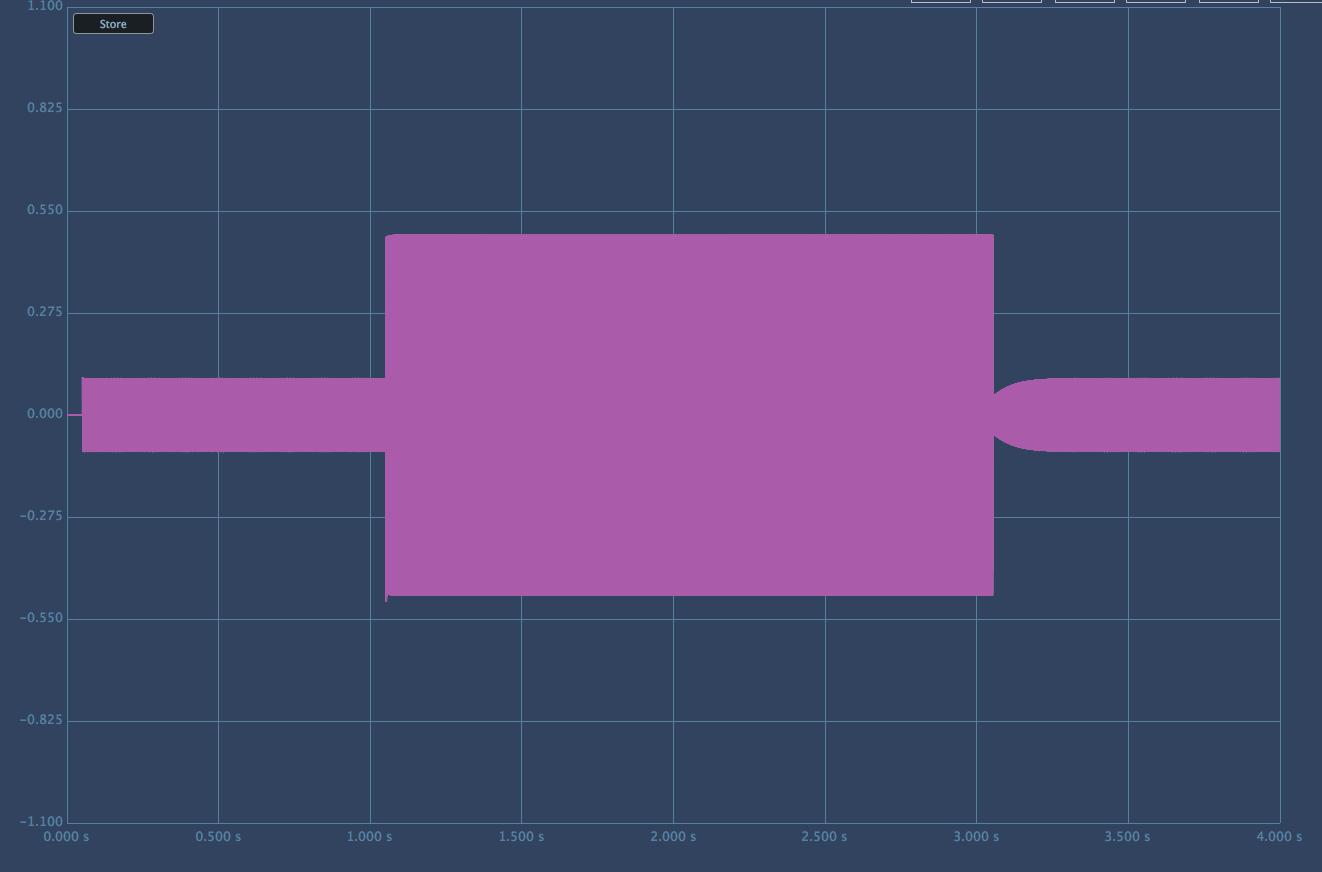

Release:
Medium
Medium
Release:
Slow
Slow

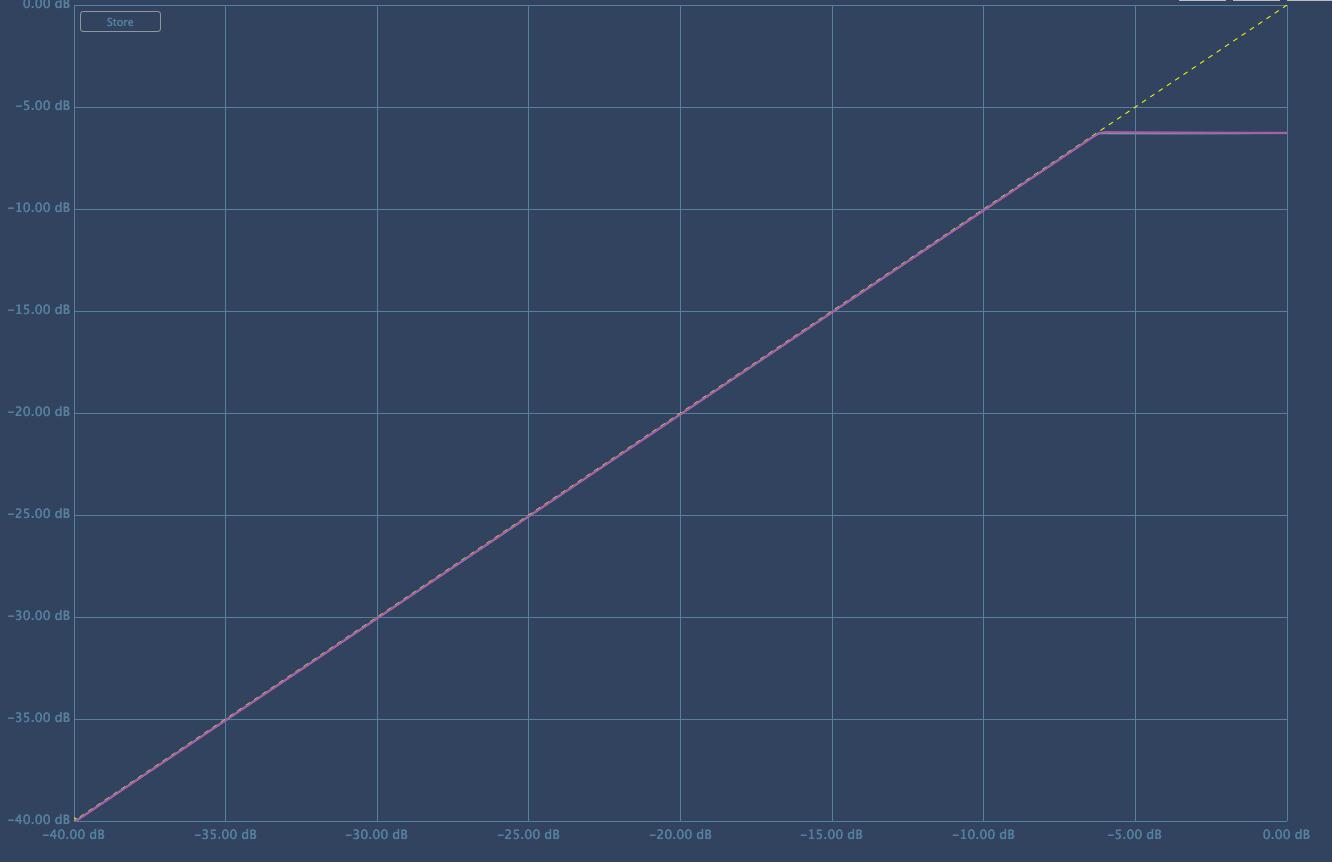

Ratio:

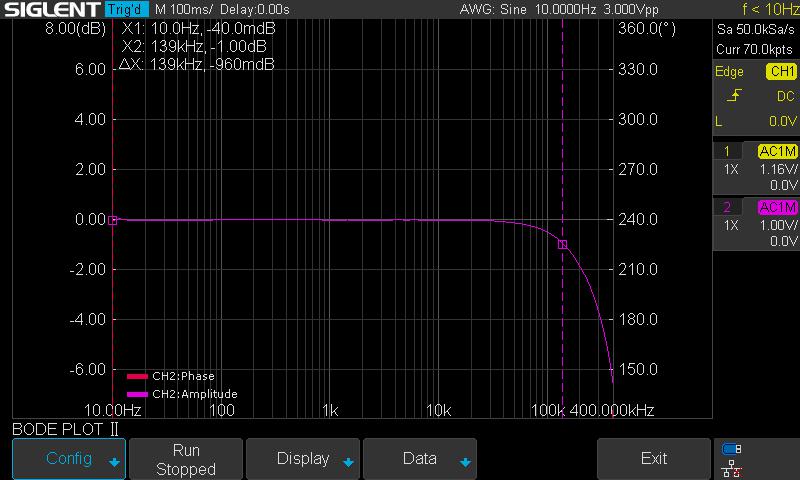

frequency response:
-1dB @ 139kHz
-1dB @ 139kHz

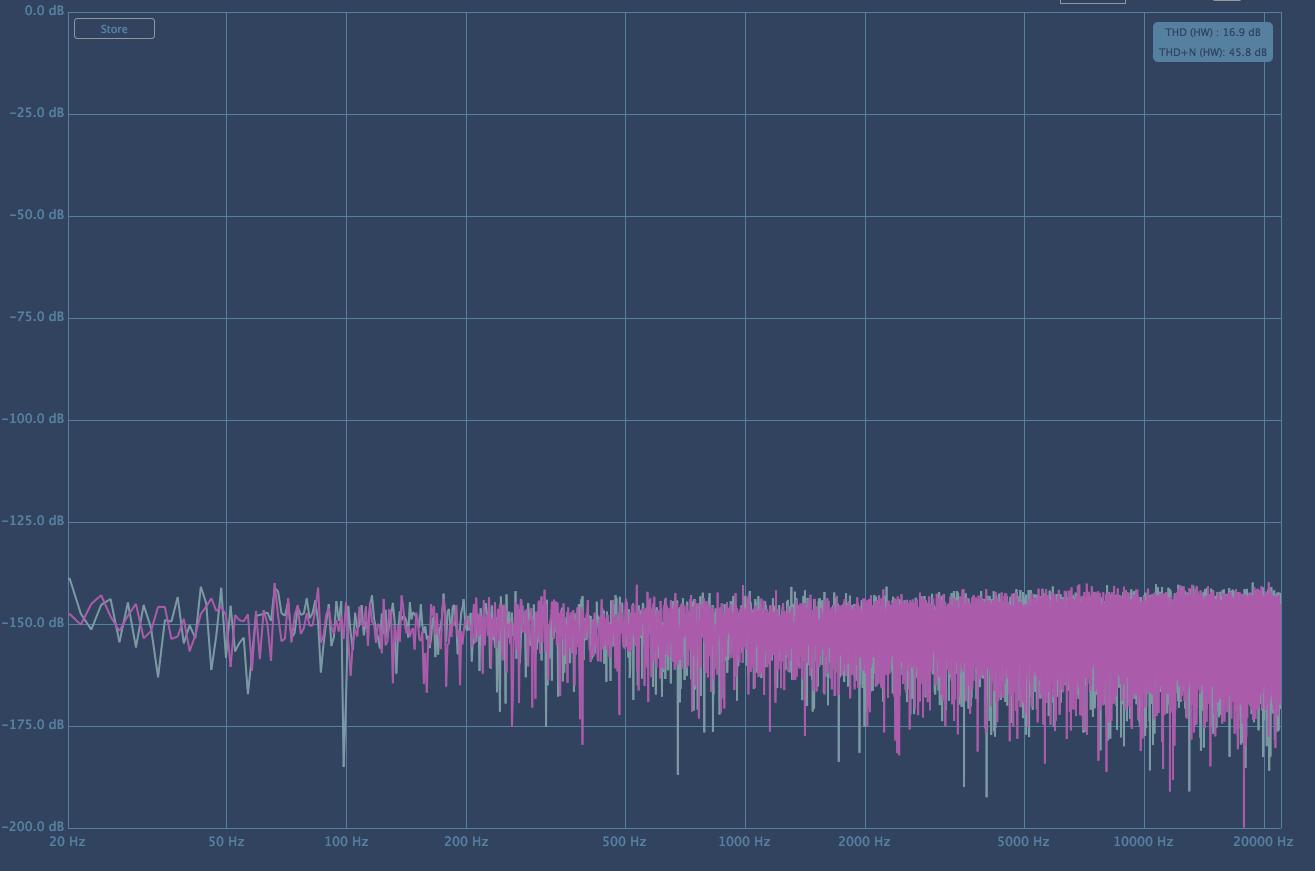

noise level:
