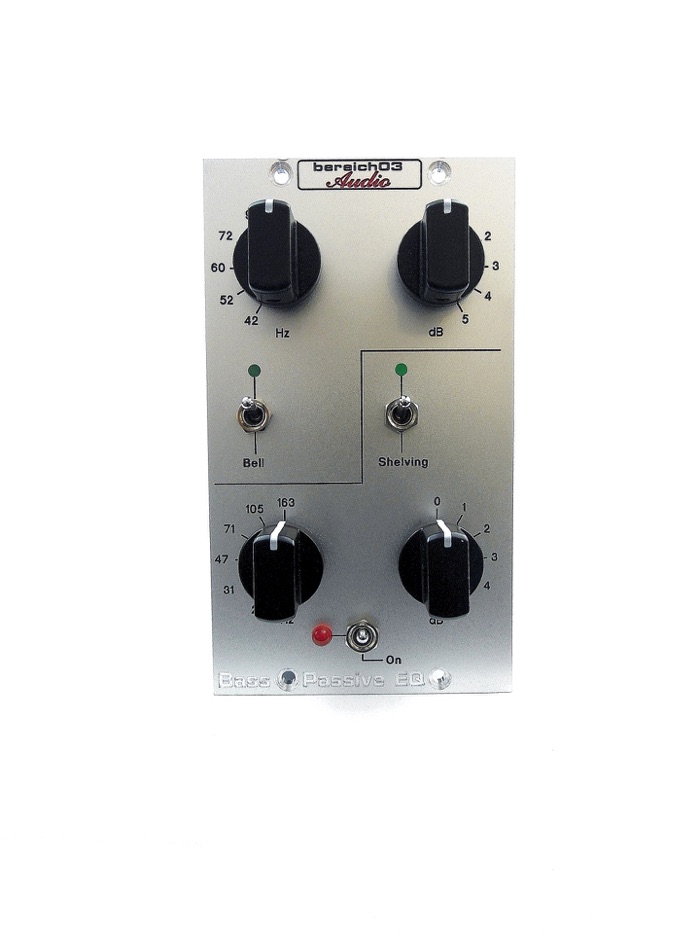

Passive-Bass
Passive-Bass:
This is a passive EQ with only Bass Boost. One bell and one shelving band only boost. Both bands are based on custom-made Inductors with an discret OpAmp for the gain. There are two options for the discret OpAmp. The first is a more modern designe and the second is a more vintage, very simple designe with much more harmonics.
This is a passive EQ with only Bass Boost. One bell and one shelving band only boost. Both bands are based on custom-made Inductors with an discret OpAmp for the gain. There are two options for the discret OpAmp. The first is a more modern designe and the second is a more vintage, very simple designe with much more harmonics.
Low Bell Boost Fr:
6 different Frequencies
6 different Frequencies
On for Bell and Shelving
Low Schelving Fr:
6 different Frequencies
6 different Frequencies
Low Bell Boost:
+5dB in 1dB steps
+5dB in 1dB steps
Low Shelving Boost:
+5dB in 1dB steps
+5dB in 1dB steps
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Price:
600,- euro (without german tax)
Availability:
Will be build on request. 3 weeks delivery time.
Specifications:
Frequency Response:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0,0 dB @ 5 Hz
-1 dB @ 100 kHz
26,5 dBu
48 kOhm
50 Ohm
220 mA
705 gr (1,5lbs)
2 slot
-1 dB @ 100 kHz
26,5 dBu
48 kOhm
50 Ohm
220 mA
705 gr (1,5lbs)
2 slot
;)
;)
;)
;)
;)
;)

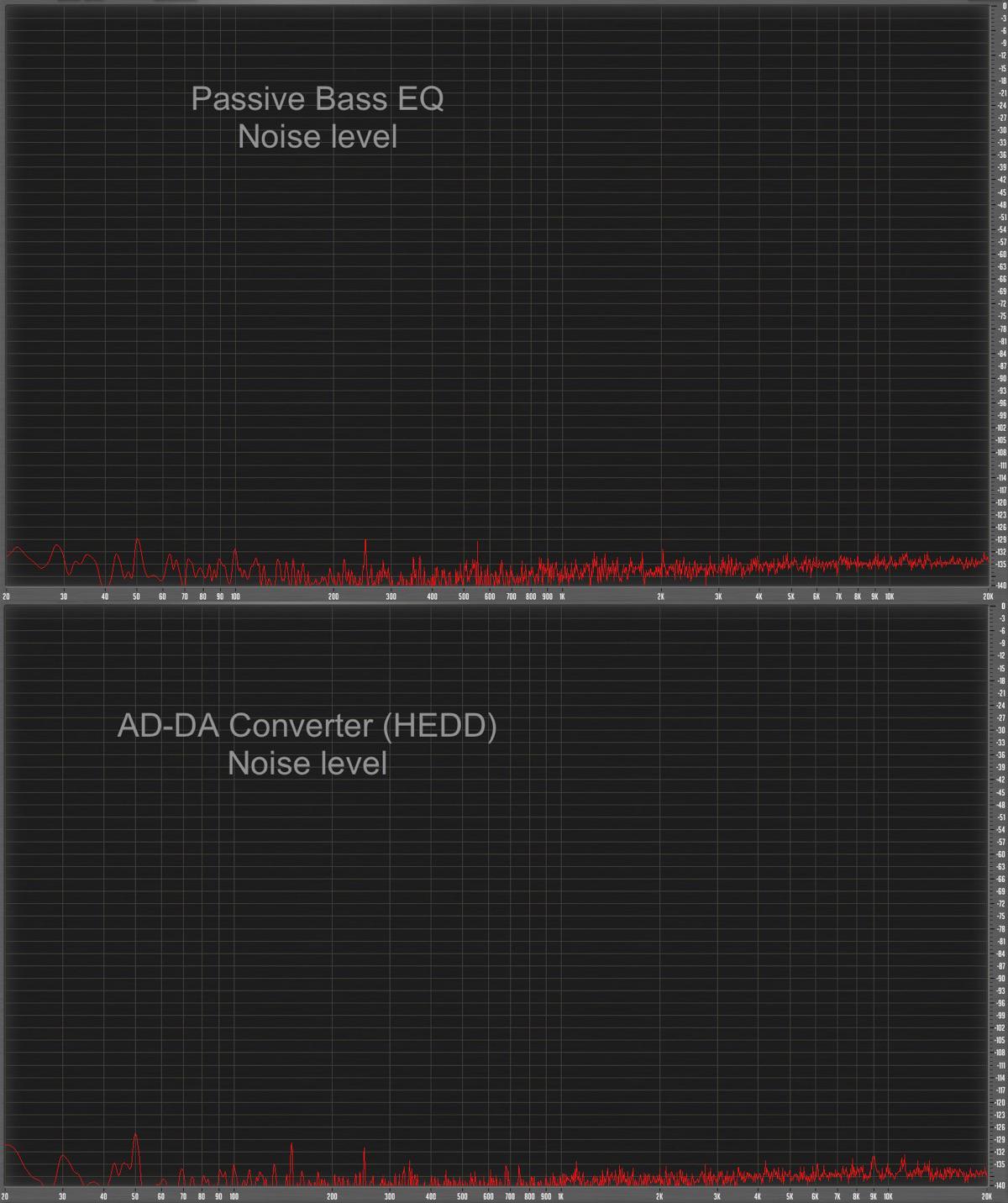

Noise level:

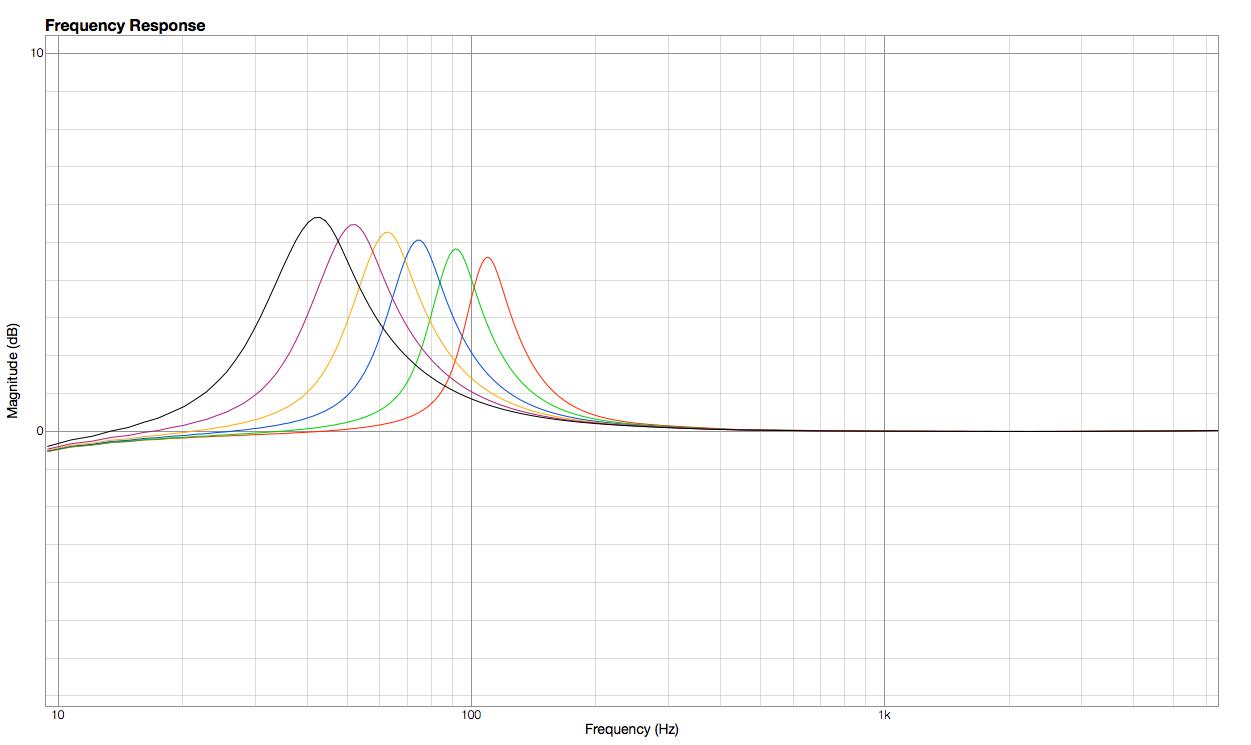

Bell:
+5 dB
+5 dB

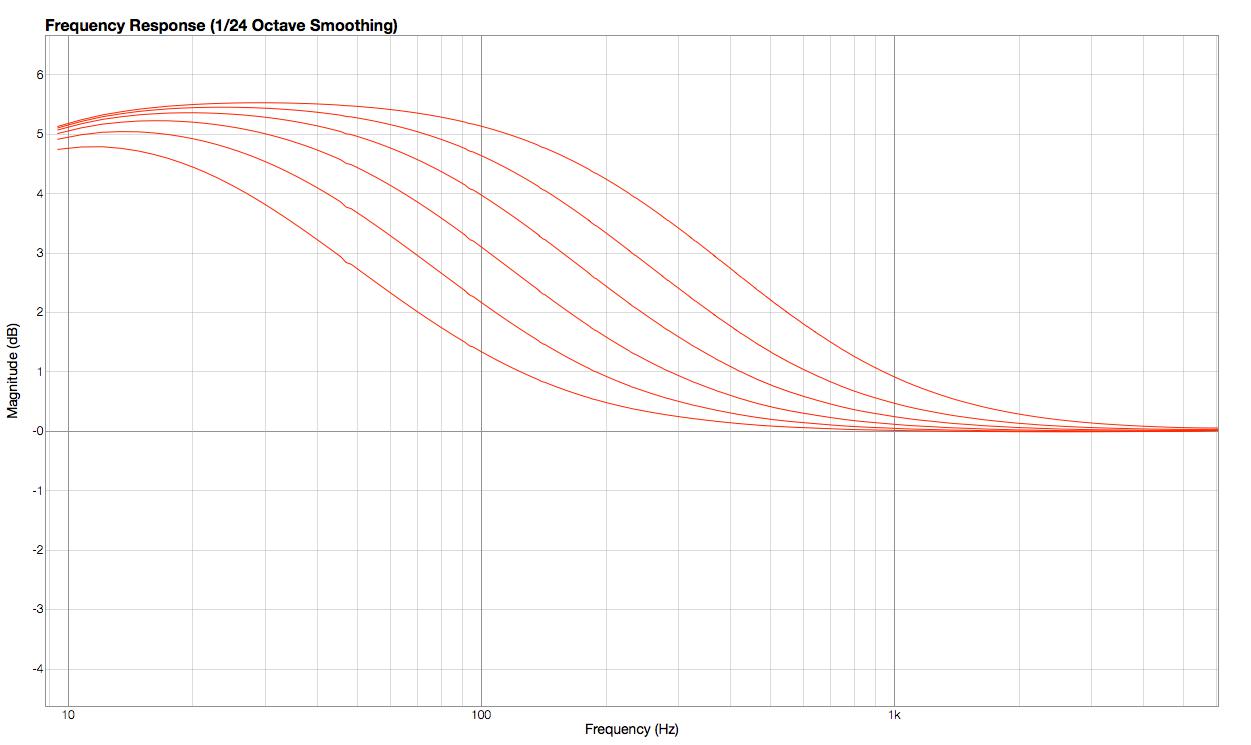

Shelving:
+5 dB
+5 dB

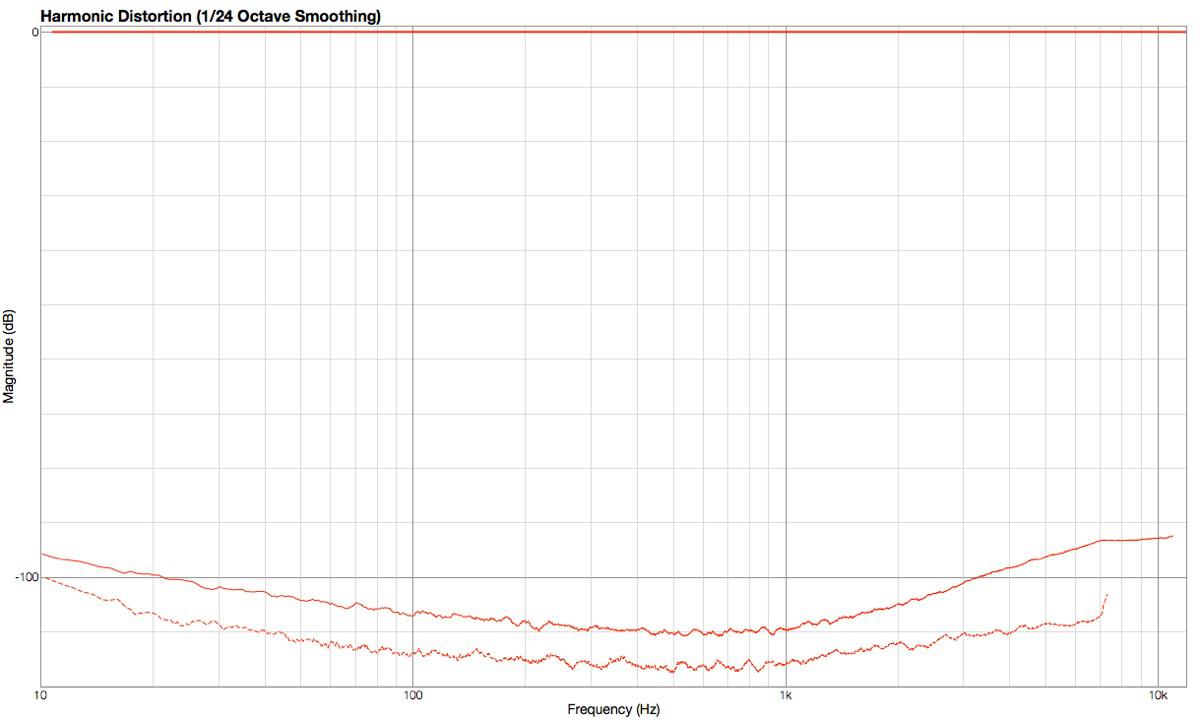

modern OpAmp THD:
solid line: 2. harmonics
dashed line: 3. harmonics
solid line: 2. harmonics
dashed line: 3. harmonics

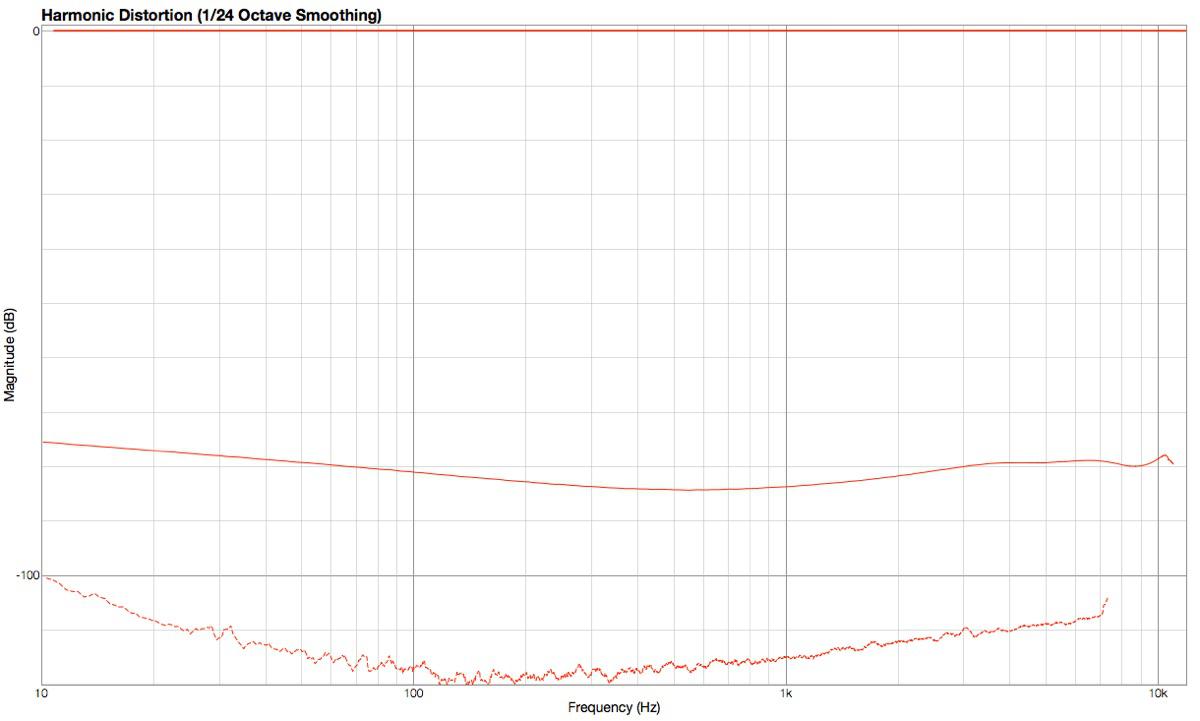

vintage OpAmp THD:
solid line: 2. harmonics
dashed line: 3. harmonics
solid line: 2. harmonics
dashed line: 3. harmonics

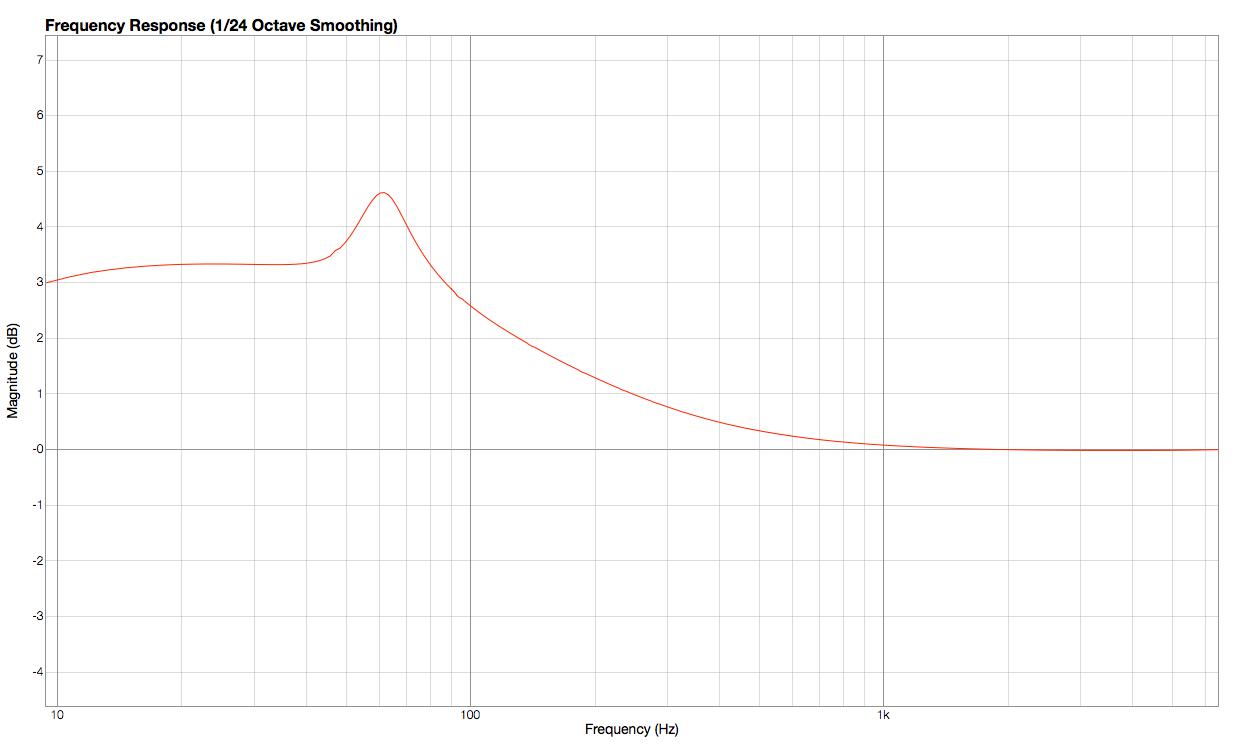

Shelving:
71 Hz +3 dB
Bell:
60 Hz +2 dB
71 Hz +3 dB
Bell:
60 Hz +2 dB
