Input
Input:

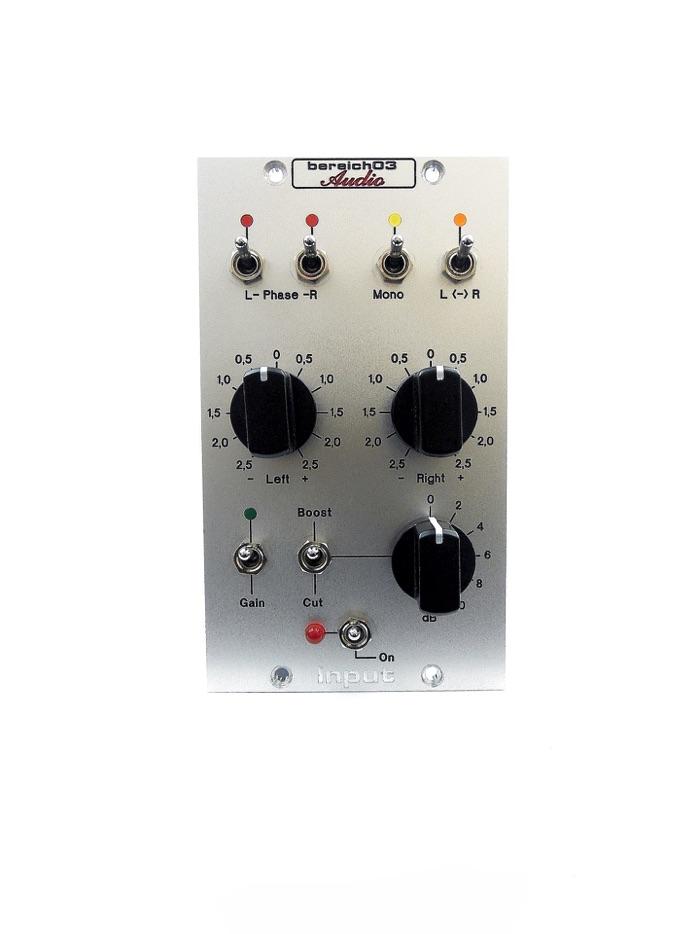

This is designed to be the first stage of your analog mastering chain. With a very clean gain block to adjust the balance and bring the level to the right area. Additionally there are switches for Phase L/R, Mono and Swap left right.
This is designed to be the first stage of your analog mastering chain. With a very clean gain block to adjust the balance and bring the level to the right area. Additionally there are switches for Phase L/R, Mono and Swap left right.
L/R Phase Reverse
Left / Right:
Gain in 0,5 dB steps
Gain in 0,5 dB steps
Gain On/Off:
Off: The gain block is out ot the signal flow.
Off: The gain block is out ot the signal flow.
Swap Left and Right
Mono
Gain:
+/- 10 dB in 2 dB steps
+/- 10 dB in 2 dB steps
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Price:
500,- euro (without german VAT)
Availability:
In stock (most of the time)
Specifications:
Frequency Response:
Max. Level:
Noise Level ,dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Noise Level ,dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0,0 dB @ 5 Hz
-1 dB @ 191 kHz
+24 dBu
-117 dBA
48 kOhm
50 Ohm
310 mA
495 gr (1,1lbs)
2 slots
-1 dB @ 191 kHz
+24 dBu
-117 dBA
48 kOhm
50 Ohm
310 mA
495 gr (1,1lbs)
2 slots
;)
;)
;)
;)

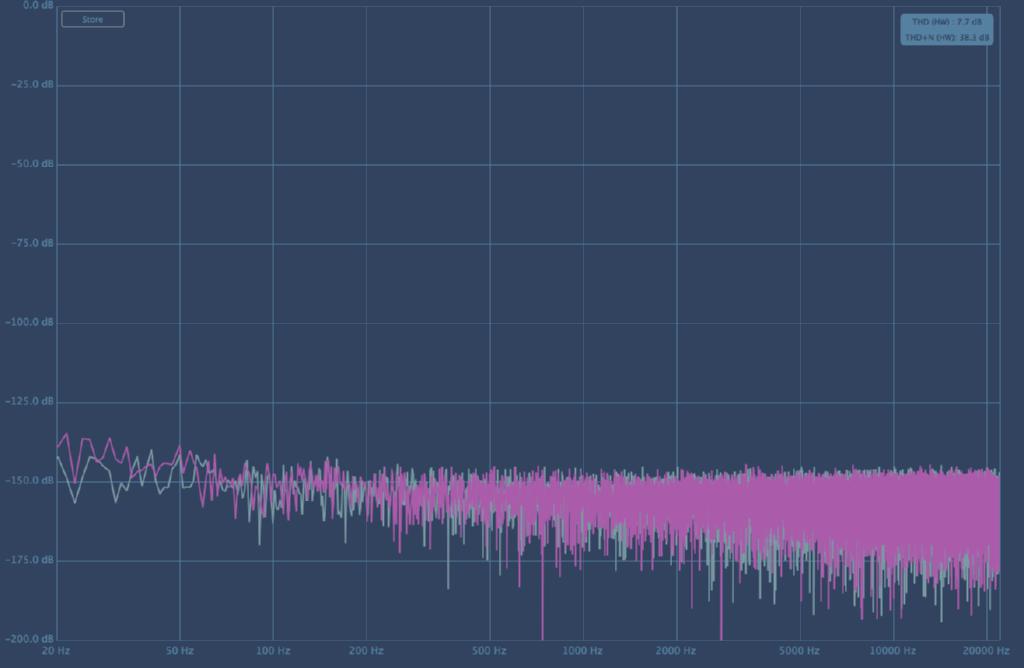

Noise level:

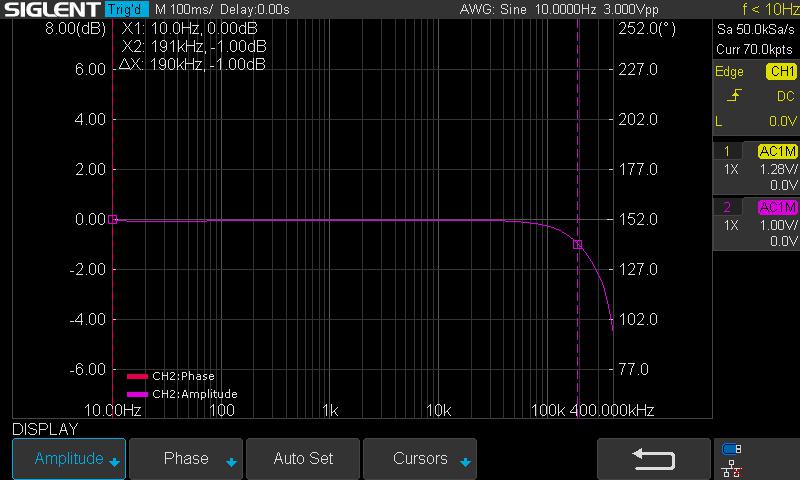

Frequency response:
-1dB @ 191kHz
-1dB @ 191kHz

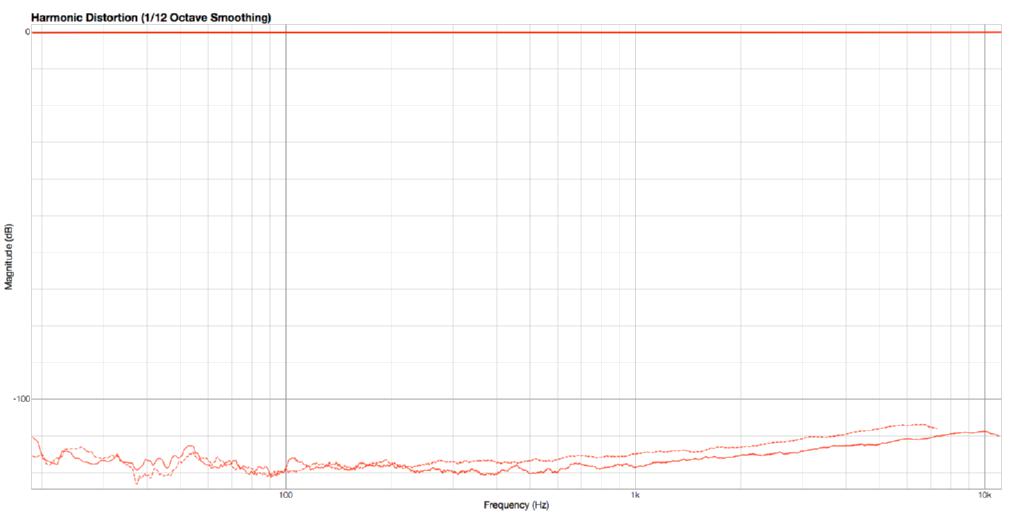

THD:
solid line: 2. harmonics
dashed line: 3. harmonics
solid line: 2. harmonics
dashed line: 3. harmonics

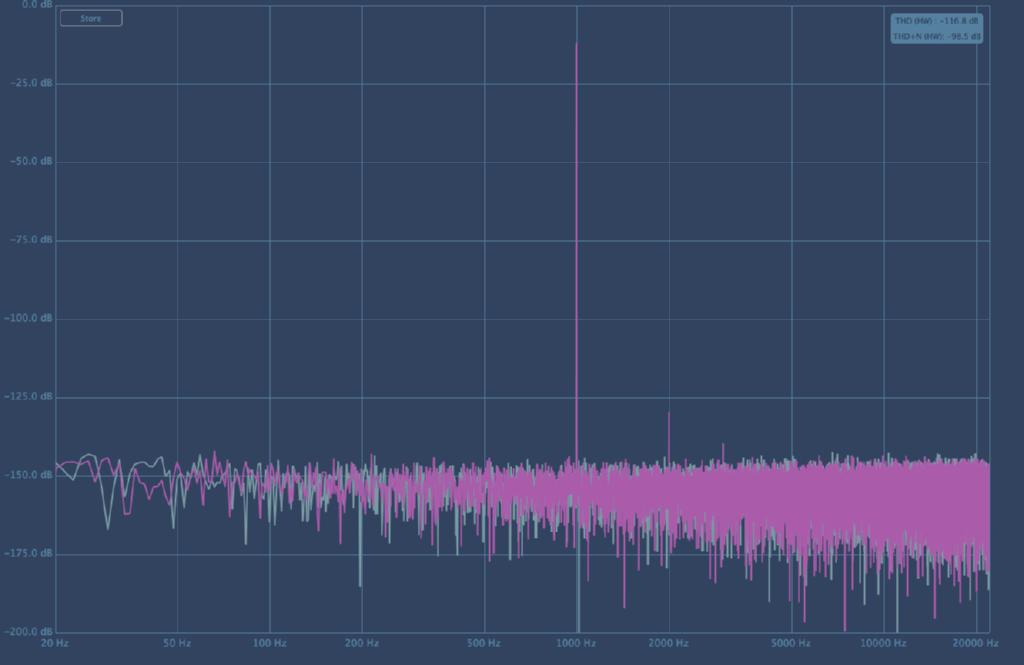

THD:
1kHz test tone
1kHz test tone
