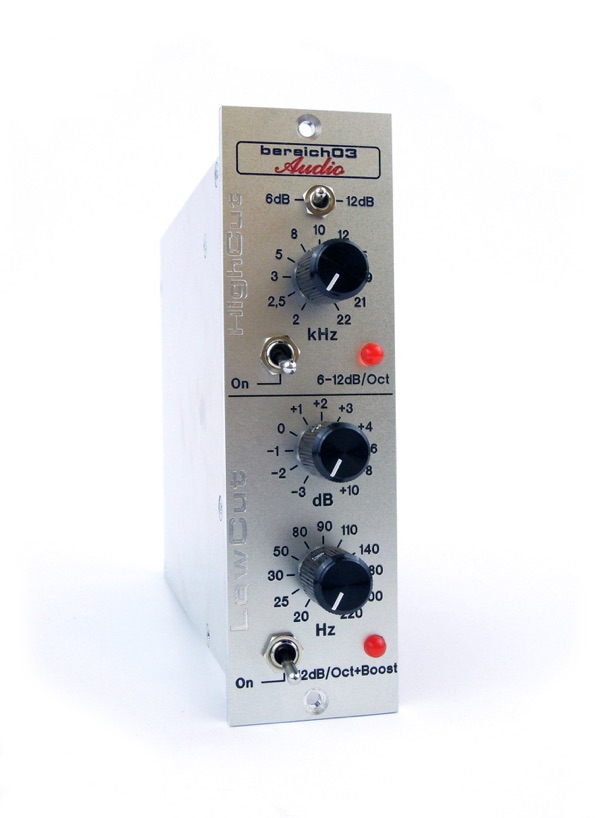

LC-HC
6dB / 12dB Switch:
Changes the slope of the HighCut filter from 6dB/oct to 12dB/oct.
Changes the slope of the HighCut filter from 6dB/oct to 12dB/oct.
On / Off:
Off: hardwire bypass with relays.
Off: hardwire bypass with relays.
HighCut Cutoff:
Adjustable Cutoff frequency from 2kHz up to 22kHz.
Adjustable Cutoff frequency from 2kHz up to 22kHz.
On:
up: True hardwire bypass with relays.
up: True hardwire bypass with relays.
boost:
Here you can boost the level at the cutoff frequency. It starts at -3dB, cause the cutoff point is defined where the level drops 3dB. You can boost up to 10dB.
Here you can boost the level at the cutoff frequency. It starts at -3dB, cause the cutoff point is defined where the level drops 3dB. You can boost up to 10dB.
LowCut Cutoff:
Adjustable cutoff frequency from 20Hz up to 220Hz.
Adjustable cutoff frequency from 20Hz up to 220Hz.
Price:
400,- euro (without german tax)
Availability:
Will be build on request. 3 weeks delivery time.
Specifications:
Frequency Response:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
-1dB @ 5Hz (without LowCut)
-1dB @ 30kHz (without HighCut)
26 dBu
20 kOhm, balanced
44 Ohm, balanced
145 mA
250 g (0,55Ibs)
1 slot
-1dB @ 30kHz (without HighCut)
26 dBu
20 kOhm, balanced
44 Ohm, balanced
145 mA
250 g (0,55Ibs)
1 slot
Details:
This module contains a LowCut filter and a HighCut filter.
At the HighCut filter you can change the slope from 12dB/oct to 6dB/oct. During the developing of this module I started with the 12dB/oct version. I realized that I can hear the cutoff frequency with the 12dB/oct slope. This is sometimes ok, but not always. So I decided to add a 6dB/oct slope. This is much more gentle. You can soften harsh sounds in a very natural way. The range goes from 2kHz up to 22kHz.
The LowCut filter has a 12dB/oct slope. The range goes from 20Hz up to 220Hz. When I started building this LowCut filter, I spent a lot of time experimenting with the shape of the cutoff point. In this module I ended up with a version where you can adjust the boost at the cutoff frequency with a poti.
At the HighCut filter you can change the slope from 12dB/oct to 6dB/oct. During the developing of this module I started with the 12dB/oct version. I realized that I can hear the cutoff frequency with the 12dB/oct slope. This is sometimes ok, but not always. So I decided to add a 6dB/oct slope. This is much more gentle. You can soften harsh sounds in a very natural way. The range goes from 2kHz up to 22kHz.
The LowCut filter has a 12dB/oct slope. The range goes from 20Hz up to 220Hz. When I started building this LowCut filter, I spent a lot of time experimenting with the shape of the cutoff point. In this module I ended up with a version where you can adjust the boost at the cutoff frequency with a poti.
Review:
;)
;)
;)
;)

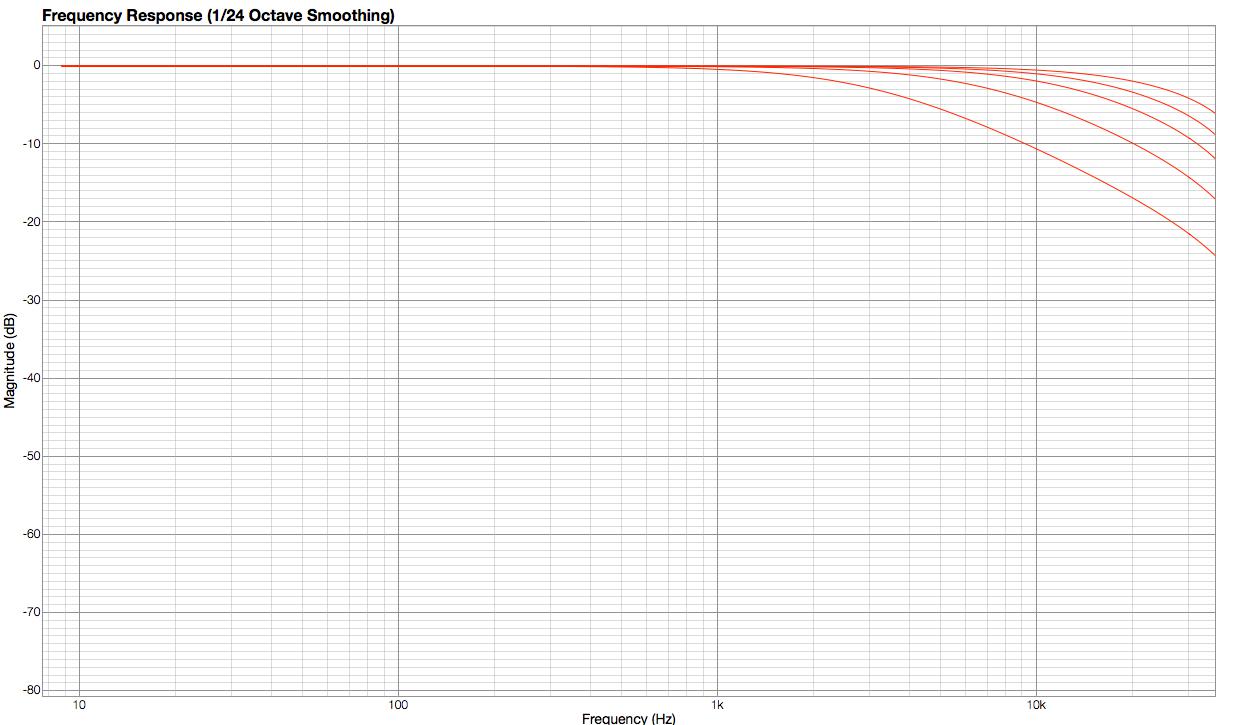

High Cut:
6dB/oct
6dB/oct

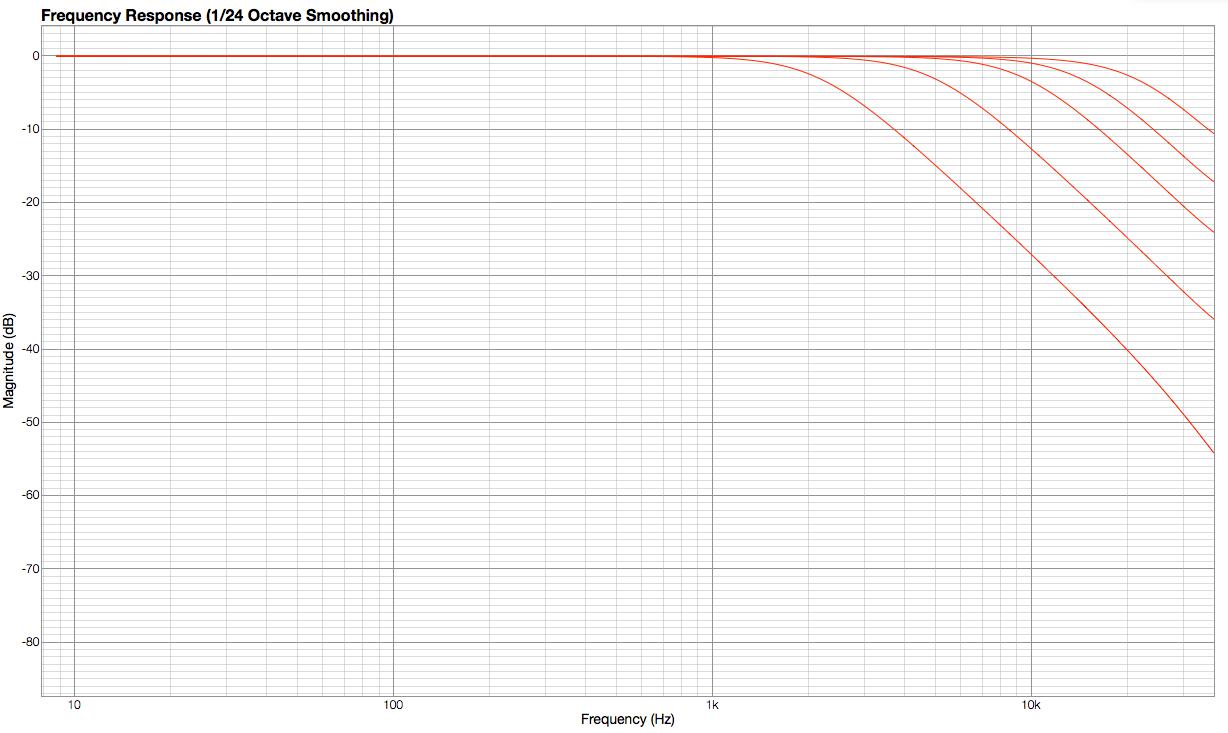

High Cut:
12dB/oct
12dB/oct

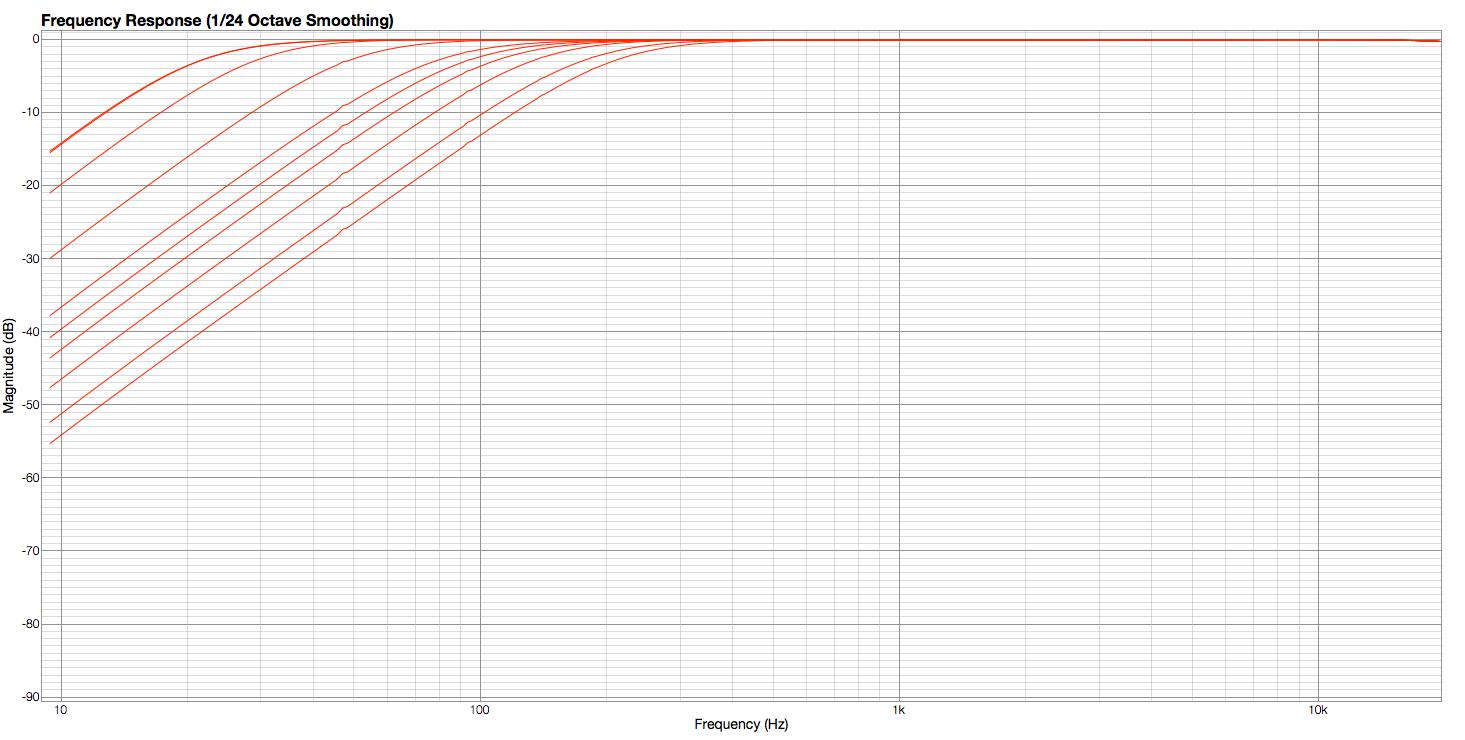

LowCut:
no boost
no boost
LowCut:
different boost
different boost
