BAX-EQ
Price:
700,- euro (without german VAT)
Availability:
In stock (most of the time)
Specifications:
Frequency Response:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Noise Level, dBA:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
0 dB @ 5 Hz
-1 dB @ 199 kHz
+24 dBu
-113 dBA
48 kOhm, balanced
50 Ohm, balanced
400 mA
600 g (lbs)
2 slots
-1 dB @ 199 kHz
+24 dBu
-113 dBA
48 kOhm, balanced
50 Ohm, balanced
400 mA
600 g (lbs)
2 slots

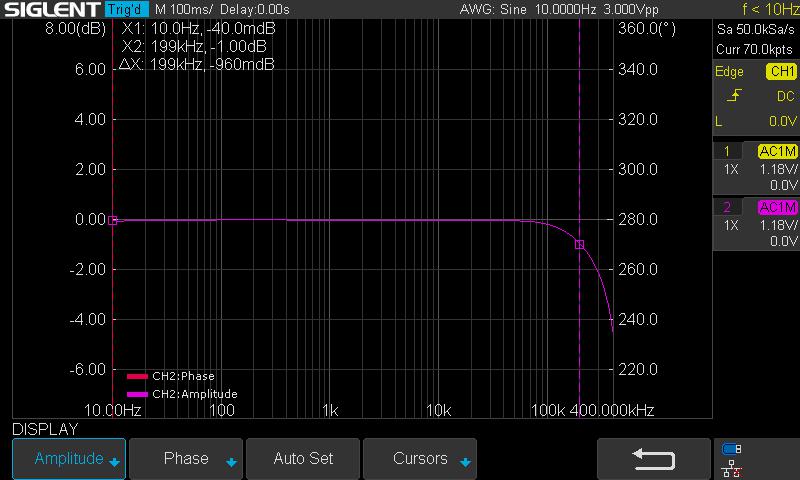

frequency response:
-1dB @ 199kHz
-1dB @ 199kHz
High frequencies:

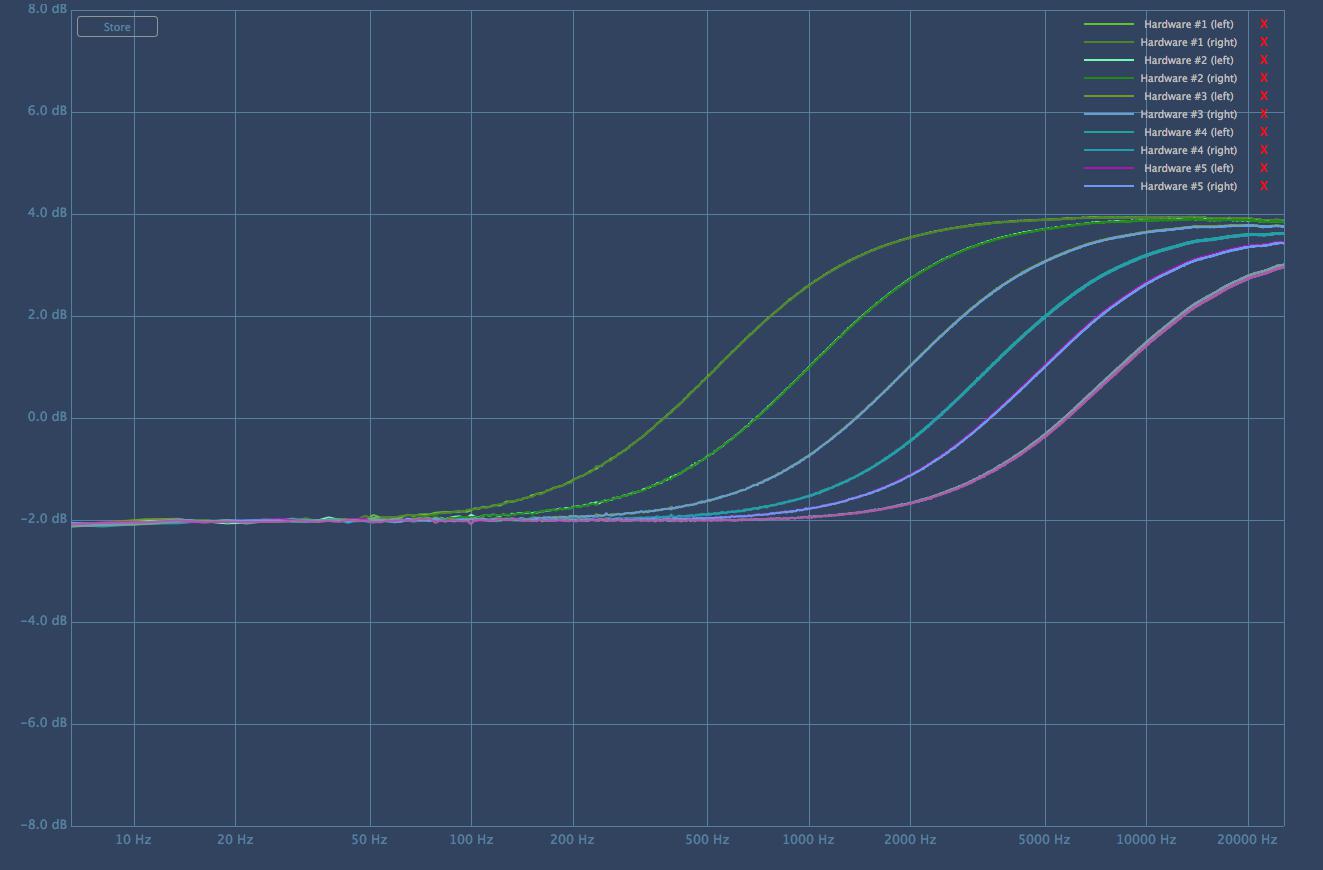

High shelf:
1,2 / 2,5 / 4,7 / 8 / 11 / 18 kHz
1,2 / 2,5 / 4,7 / 8 / 11 / 18 kHz

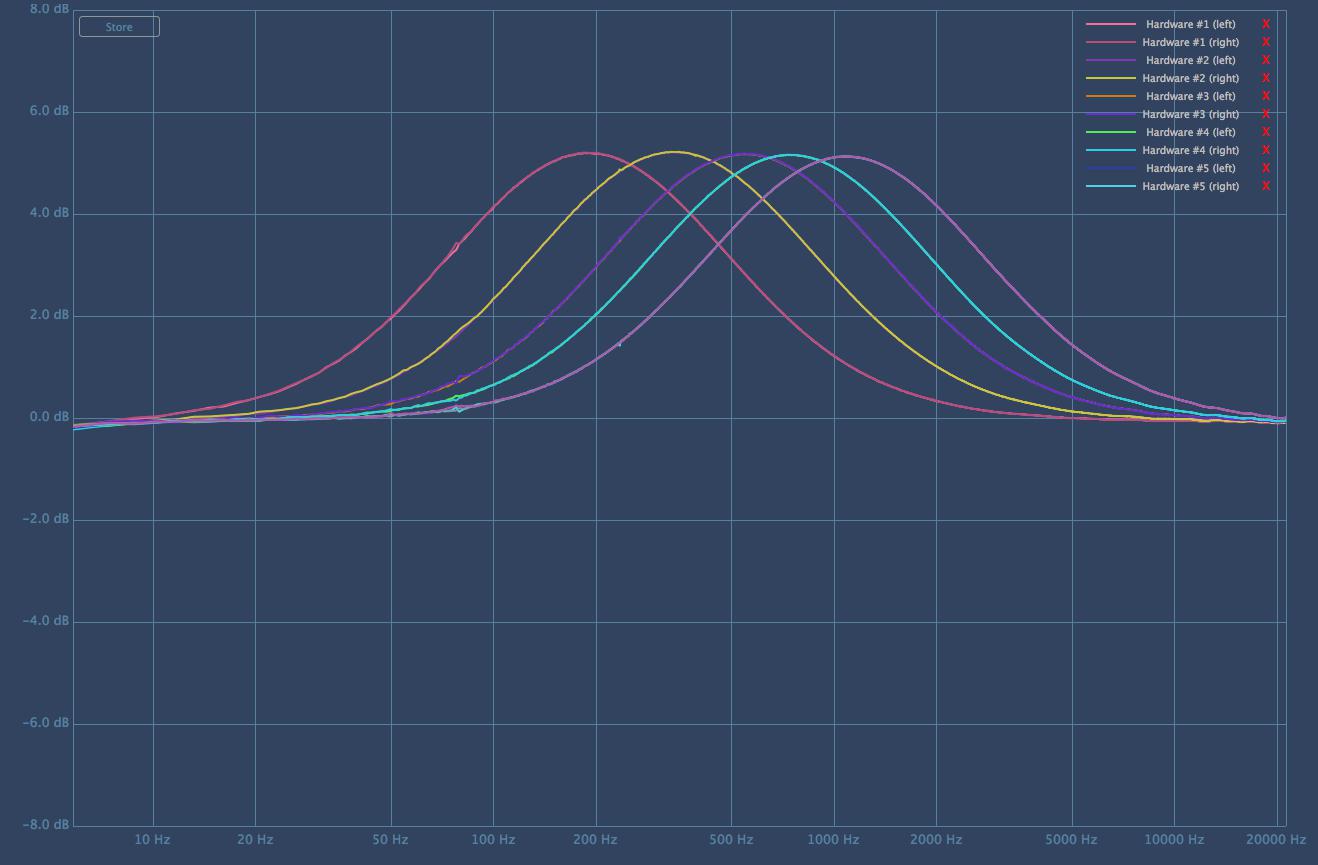

Mid bell:
190 / 340 / 540 / 770 / 1,1k Hz
190 / 340 / 540 / 770 / 1,1k Hz

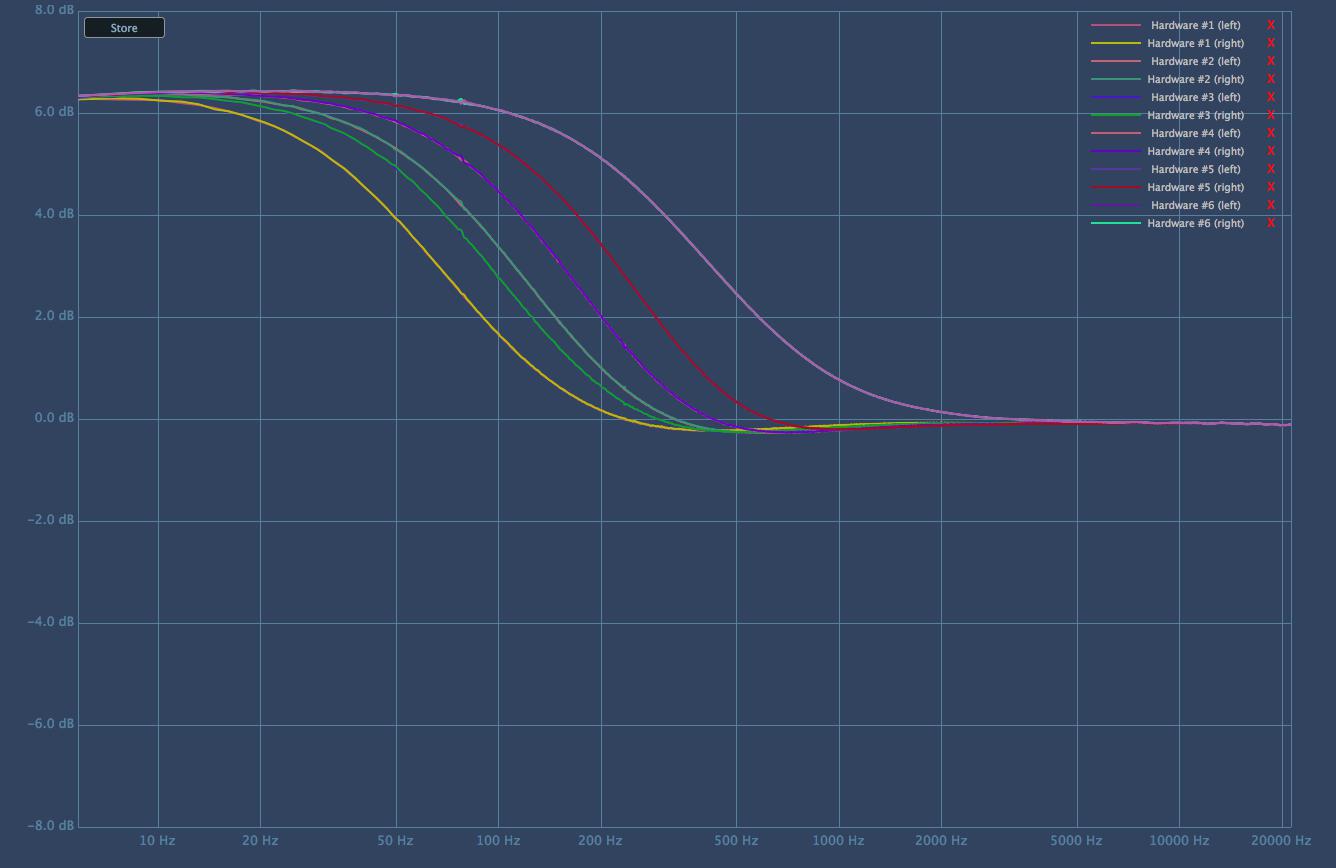

Low shelf:
35 / 47 / 62 / 82 / 120 / 210 Hz
35 / 47 / 62 / 82 / 120 / 210 Hz
Gain steps in two versions:
- 1dB steps
- 0,5 / 1,0 / 1,5 / 2,0 / 3,0
- 1dB steps
- 0,5 / 1,0 / 1,5 / 2,0 / 3,0
Mode switch for each band:
- stereo / mid / side
- stereo / mid / side
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays

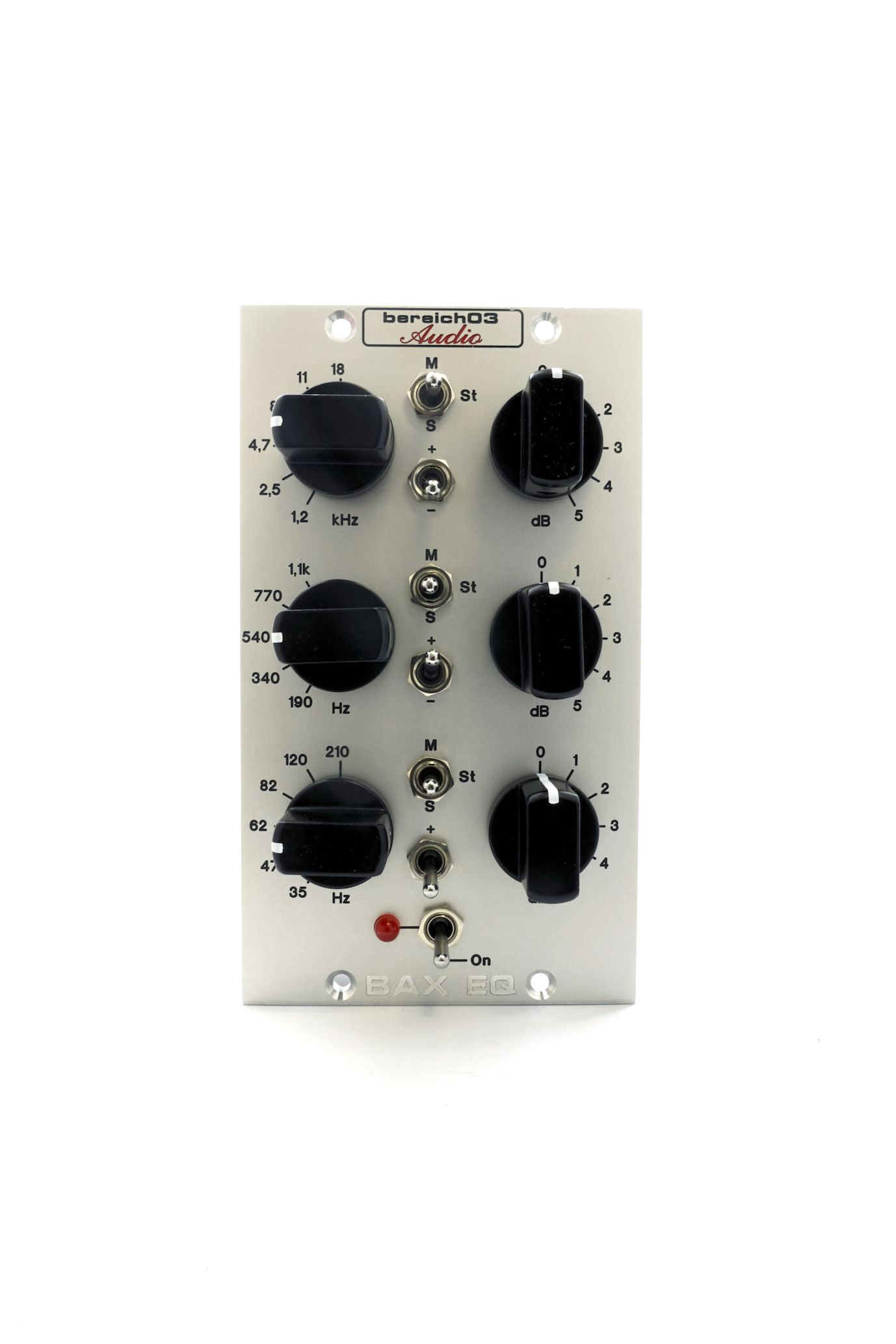

BAX-EQ:
This a stereo EQ with one control set for both sides.
High and Low band are shelving, mid-band is bell.
All controls are stepped.
Every band can be switched from normal stereo-mode to mid or side.
This a stereo EQ with one control set for both sides.
High and Low band are shelving, mid-band is bell.
All controls are stepped.
Every band can be switched from normal stereo-mode to mid or side.
Boost or Cut
;)
;)
;)
;)
;)
;)
;)
;)

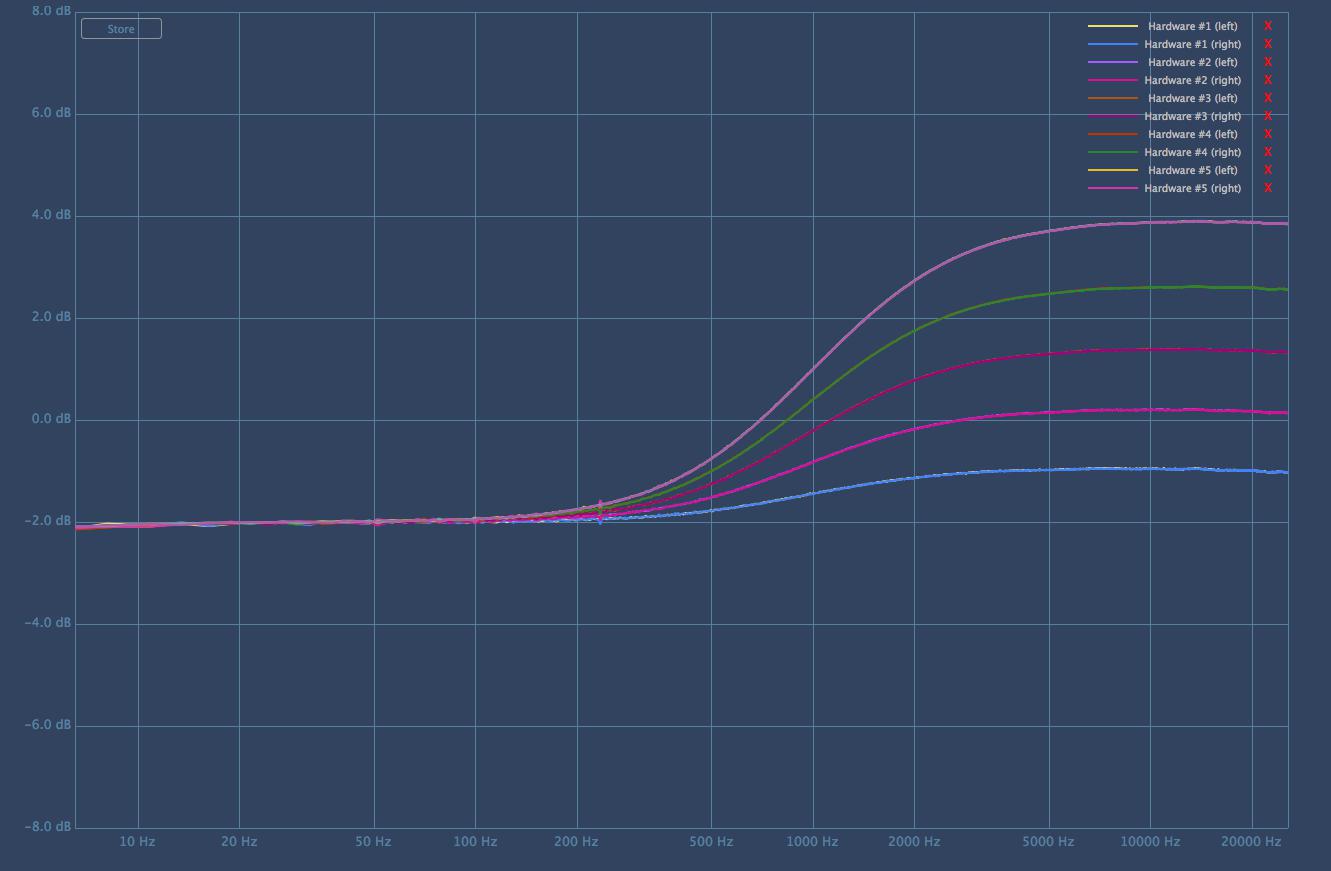

High gain:
Low frequencies:
Low gain:
Mid frequencies:

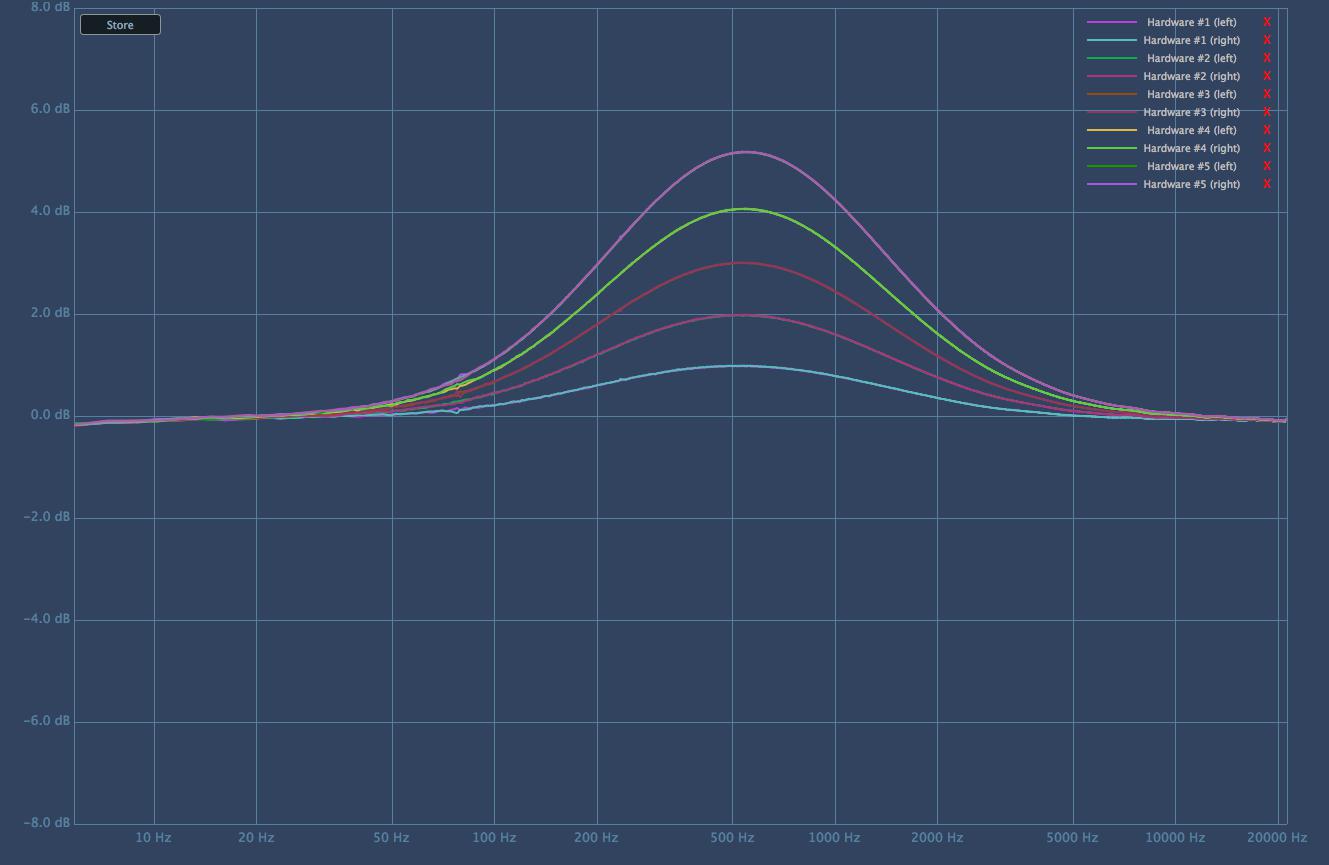

Mid gain:

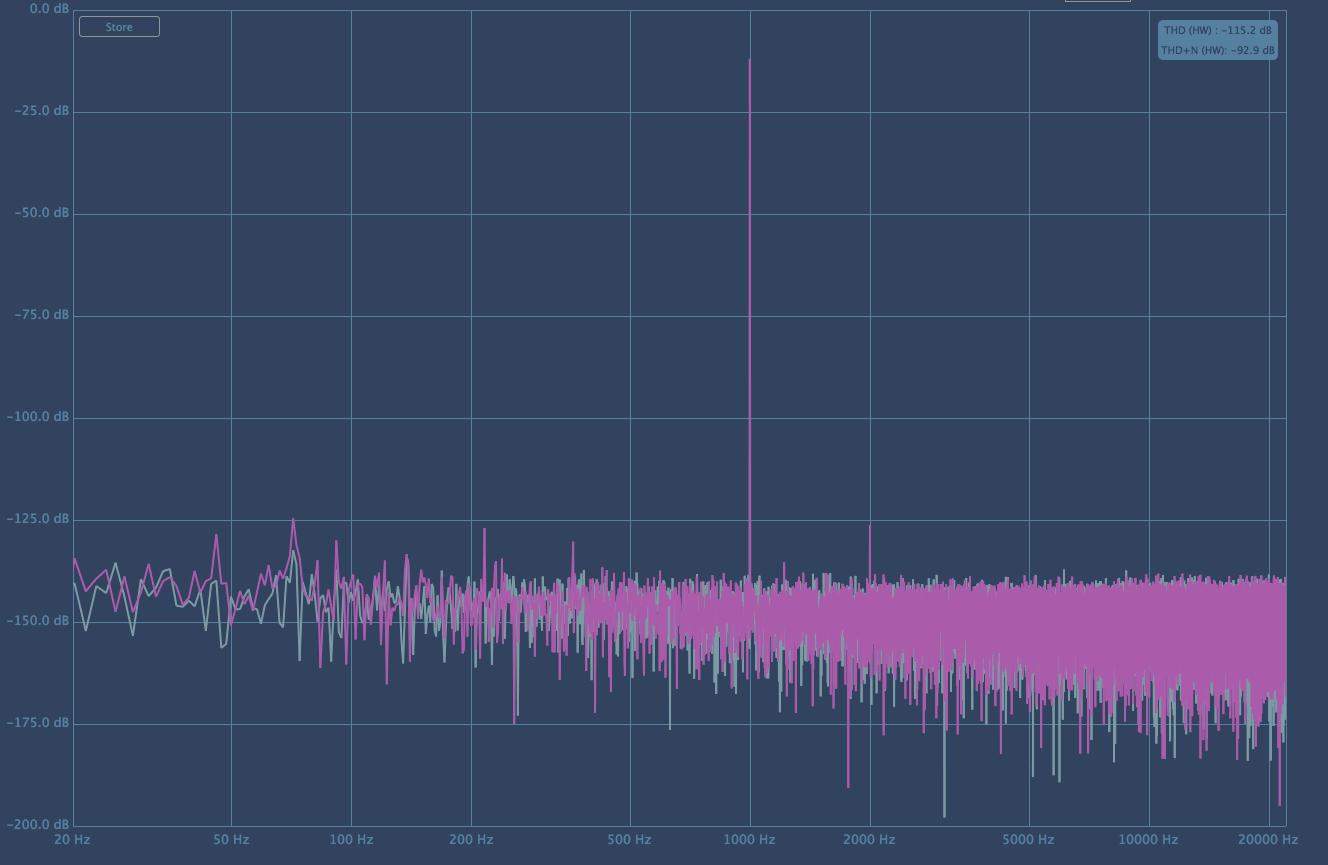

THD:
