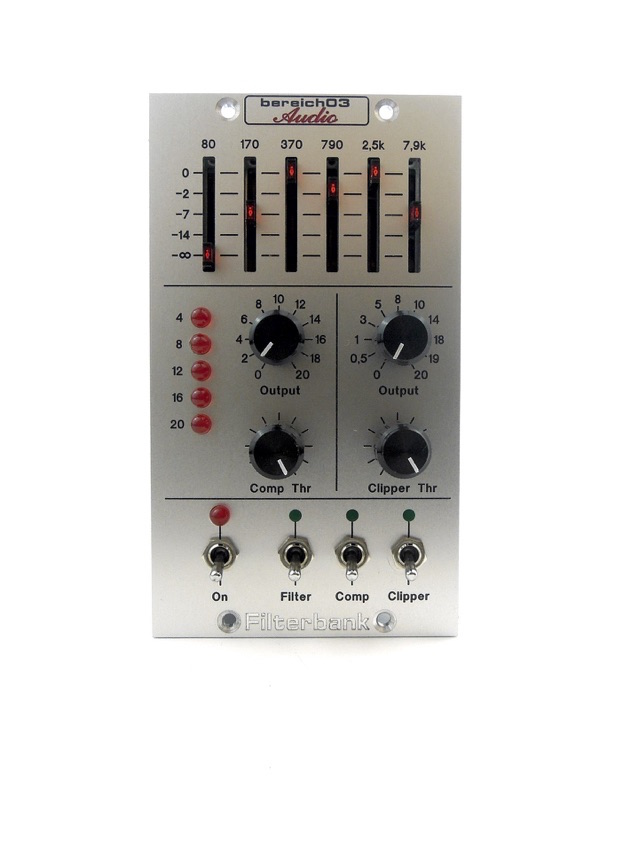

Filterbank
Filterbank:
6 parallel bandpass filters.
6 parallel bandpass filters.
Compressor:
A fast VCA Comp with a RMS detector. It has a soft knee which starts gentle, but gets very fast to a 20:1 ratio. Makup gain with 20dB.
A fast VCA Comp with a RMS detector. It has a soft knee which starts gentle, but gets very fast to a 20:1 ratio. Makup gain with 20dB.
On / Off:
Off: hardwire bypass with relays
Off: hardwire bypass with relays
Clipper:
A simple diode clipper which adds a lot of distortion.
Makup gain with 20dB.
A simple diode clipper which adds a lot of distortion.
Makup gain with 20dB.
On / Off:
All three processing blocks can be switched in and out. If they are out, they are bypassed with relays.
All three processing blocks can be switched in and out. If they are out, they are bypassed with relays.
Price:
500,- euro (without german tax)
Availability:
Will be build on request. 3 weeks delivery time.
Specifications:
Frequency Response:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
Max. Level:
Input Impedance:
Output Impedance:
Power consumption:
Weight:
Dimensions:
26,5 dBu
48 kOhm
50 Ohm
355 mA
475 g (1,1 lbs)
2 slot
Details:
I developed this unit during my last two mixing sessions. I needed a device to process the drum overheads as drastic as possible. I was thinking of a set of bandpass filters for a few years. So I started with the filterbank as the main part and added a simple but effective compressor for classic squashing and a diode clipper to add distortions.
The parallel bandpass filters are not like a graphic EQ. This means if all faders are at the lower position, there is no sound at all. If only one fader is up, you will hear only the area around this frequency. If all faders are up, it's not a linear response. The frequency plot looks more like a strange sinewave.
With the different combinations of these three processing blocks, there is a great pallet of special sounds. If you don't like drastic processing, this is not the right module for you. For all others, I think you can have a lot of fun with this little bastard.
This is a mono device, only one channel !
The parallel bandpass filters are not like a graphic EQ. This means if all faders are at the lower position, there is no sound at all. If only one fader is up, you will hear only the area around this frequency. If all faders are up, it's not a linear response. The frequency plot looks more like a strange sinewave.
With the different combinations of these three processing blocks, there is a great pallet of special sounds. If you don't like drastic processing, this is not the right module for you. For all others, I think you can have a lot of fun with this little bastard.
This is a mono device, only one channel !
Reviews:
;)
;)

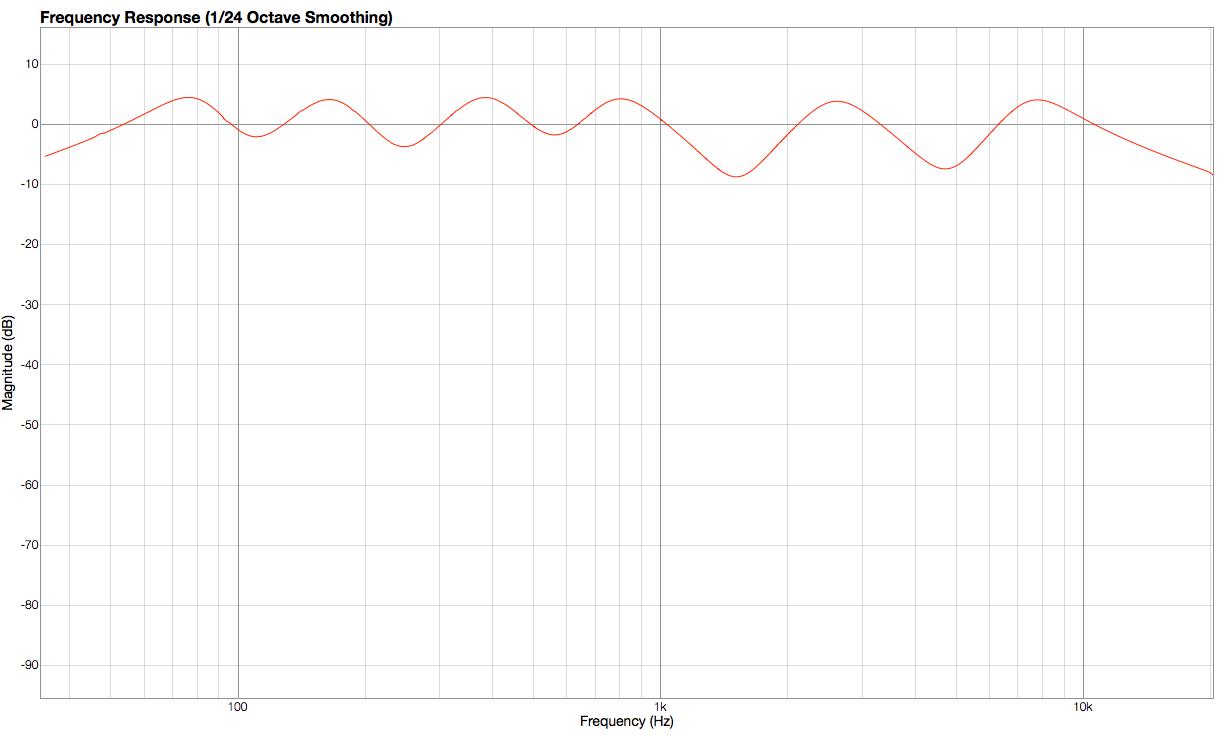

Filterbank:
all faders up
all faders up

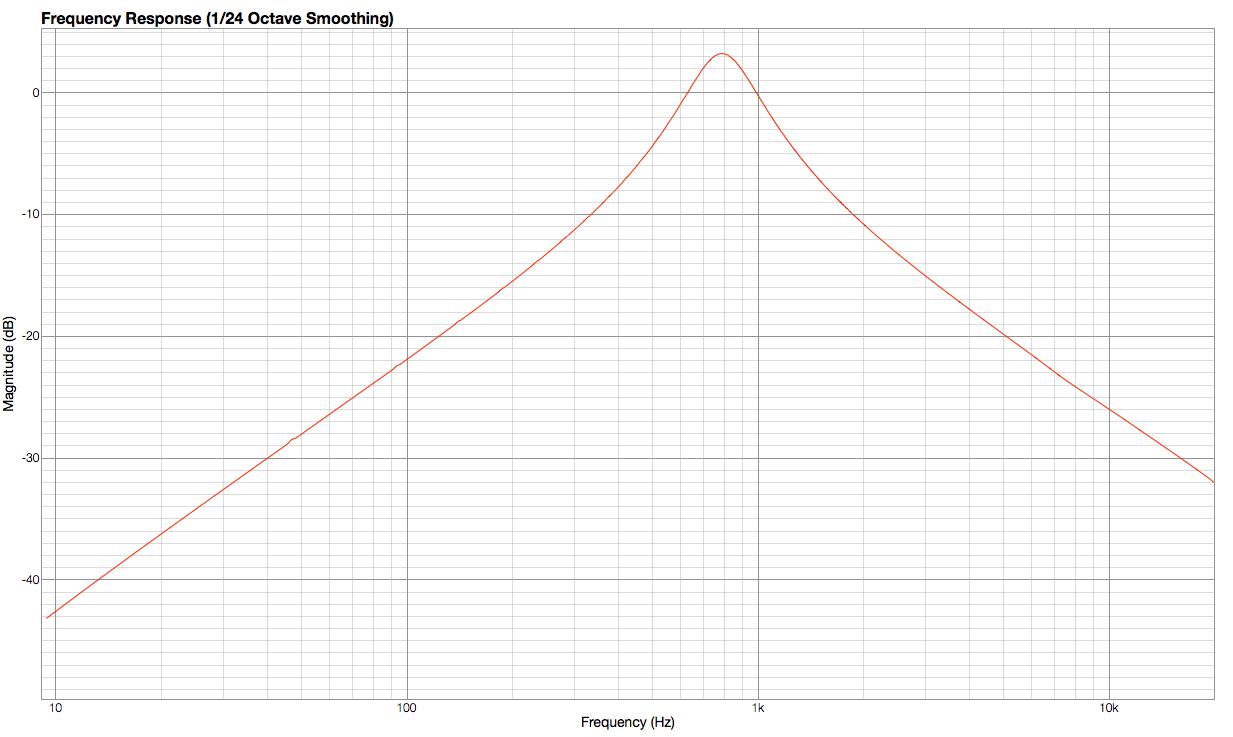

Filterbank:
only 790Hz fader up
only 790Hz fader up
