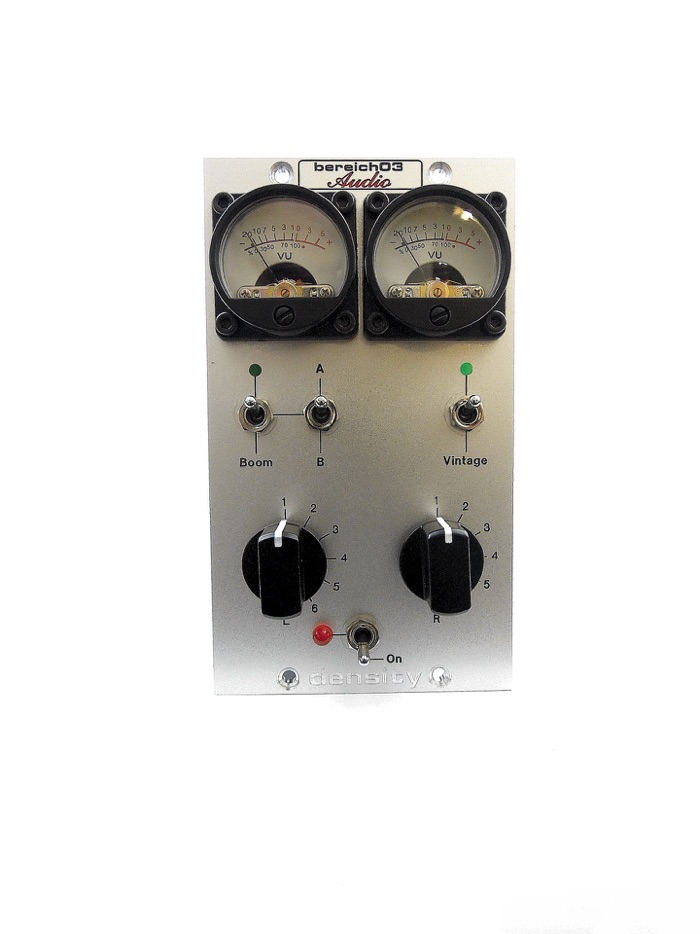

density
Modular-Mastering-Desk
density:
This is the stereo version of the original density with independent drive control for left and right. It creats a subtle saturation like pushing a tape recorder hard.
Boom A / B:
This changes the transfer curve of the low frequencies.
- A: Gentle boost of very low frequencies
- B: Gentle boost from low mid frequencies to very low frequencies
On / Off:
Off: hardwire bypass with relays.
Metering:
Indicates the saturation intensity with a very slow ballistic. Decoupled with a buffer stage from the main circuit.
Vintage:
This softens the high frequencies a little. Usefull if the highs become to agressive by driving the signal hard.
1 - 6:
Increases the Intensity of saturation. From 1: very subtle saturation, to 6: hard saturation with audible distortions All steps are volume compensated.
Price:
500,- euro (without german tax)
Availability:
Will be build on request. 3 weeks delivery time.
Specifications:
Frequency Response:


Max. Level:

Input Impedance:

Output Impedance:

Power consumption:

Weight:

Dimensions:
0,0 dB @ 5 Hz
-3 dB @ 28 kHz

26,0 dBu

48 kOhm

50 Ohm

470 mA

510 gr (1,1lbs)

2 slot

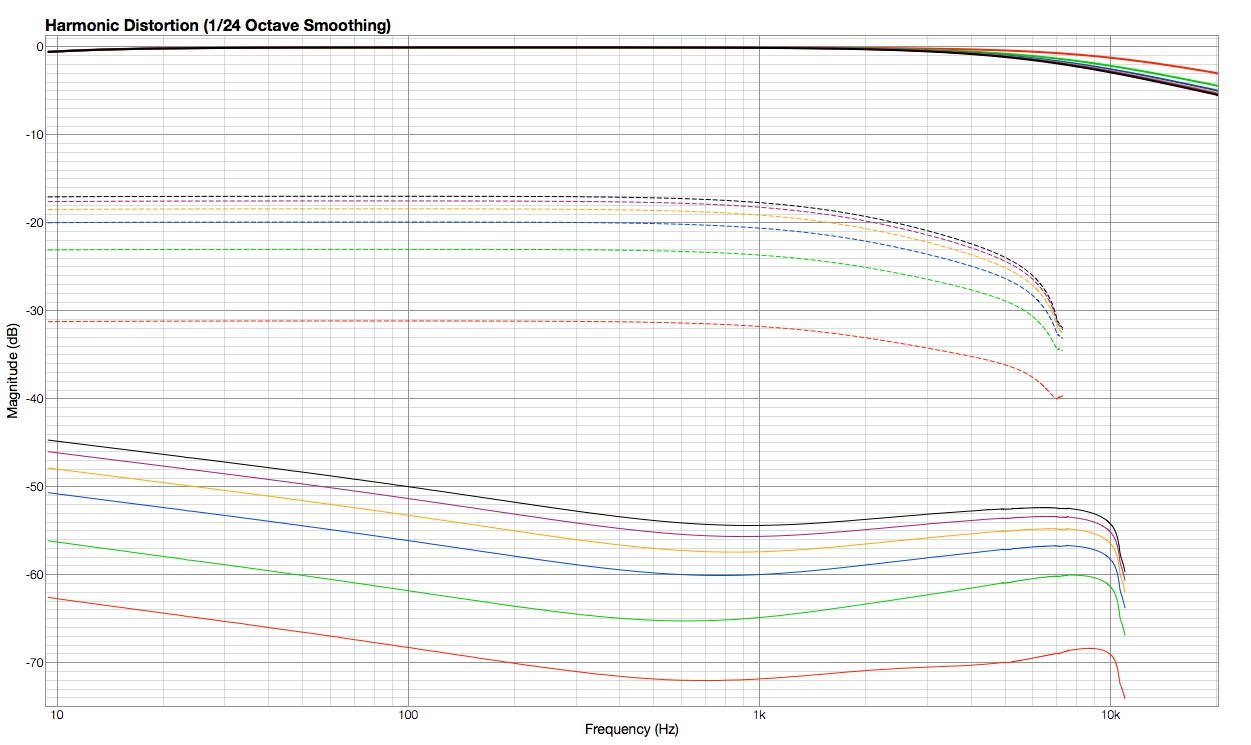

Harmoics at Step 1-6:

solid line: 2. harmonics
dashed line: 3. harmonics
Input
LED-Meter
Filter
Side-only
Passive-Bass
Passive-Mid
Passive-Shelf
Tilt-EQ
Limiter
Output
Fader
VU-Meter
Monitor-Controller

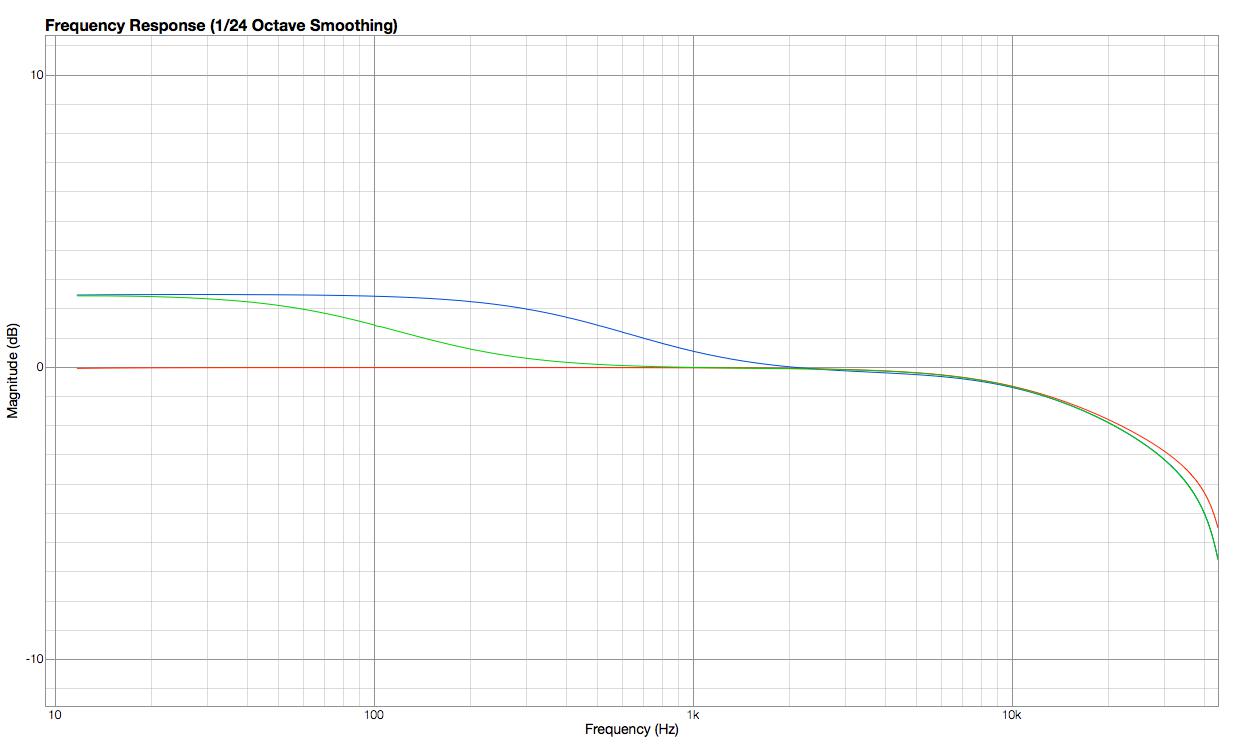

Boom:

red: without
green: Boom-A
blue: Boom-B

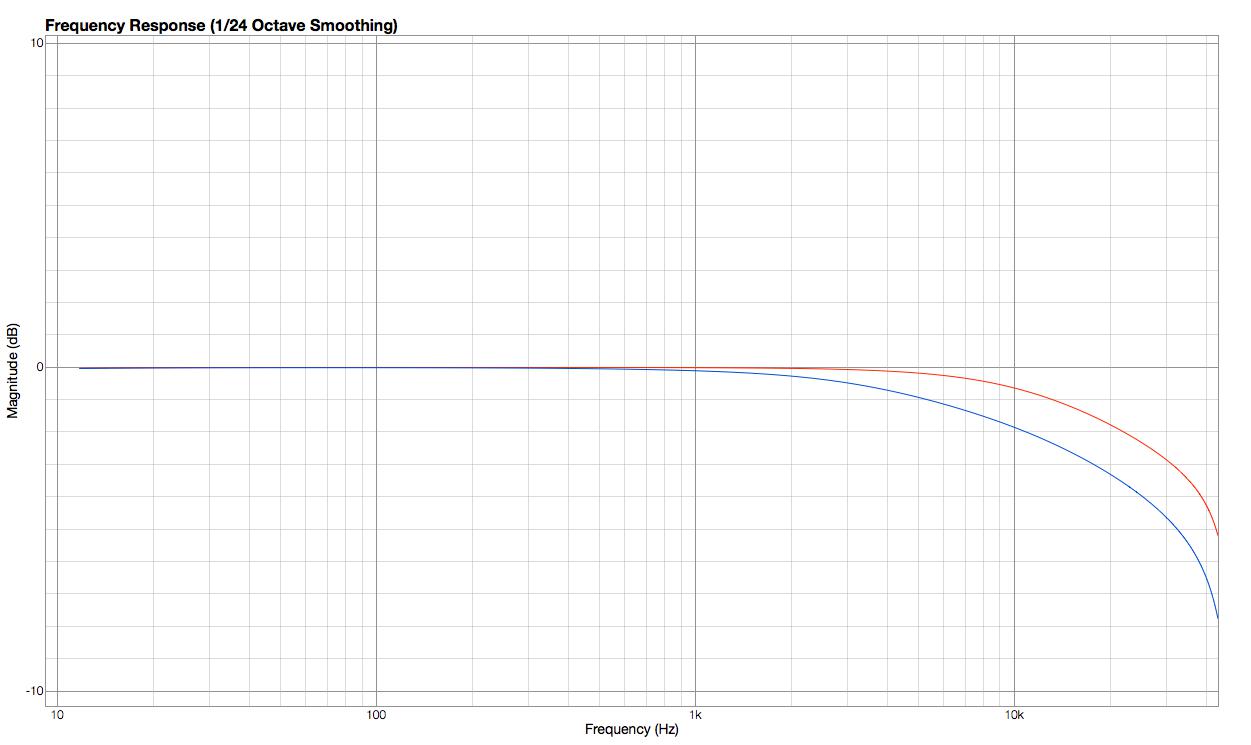

Vintage:

red: without
blue: Vintage

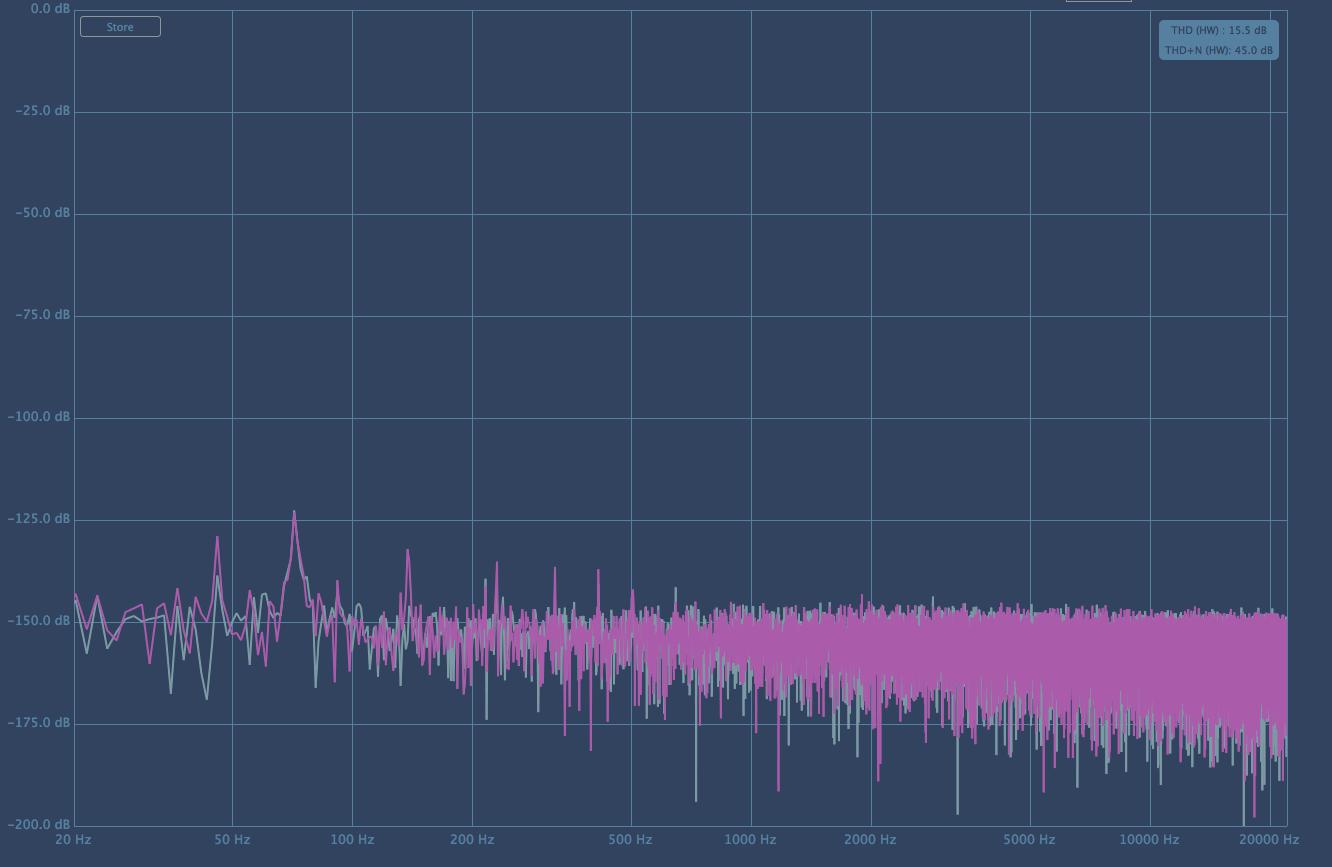

Noise level:
